THE B&C 12CL64 12" SPEAKER HANDLES 500 WATTS PROGRAM & WEIGHS ONLY 4.2LBS! |
|
|
|
12CL64 |
|
Item Price: $161.10 |
|
|
B & C PROFESSIONAL COMPONENTS |
|
12CL64 - 12" NEODYMIUM SPEAKER |
|
THE B&C 12CL64 12" SPEAKER HANDLES 500 WATTS PROGRAM & WEIGHS ONLY 4.2LBS! |
|
|
|
12CL64 |
|
Item Price: $161.10 |
|
|
SPEAKER
MODEL |
12CL64 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
12" |
|
Impedance |
8
ohms |
|
RMS
Power Rating |
250 Watts |
| Program Power | 500 Watts |
|
Frequency
Response |
50Hz
- 3.0kHz |
|
Sensitivity
(1W/1m) |
98dB |
|
Voice
Coil Diameter |
2.5"
/ 64mm |
| Winding Depth | .51" / 13mm |
| Magnetic Gap Depth | .31" / 8mm |
| Flux Density | 1.15T |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
12.32" / 313mm |
| Bolt Circle Diameter | 11.77" / 299mm |
| Baffle Cutout Diameter | 11.1" / 282mm |
| Depth | 5.24" / 133mm |
| Flange & Gasket Thickness | .35" / 9mm |
| No. Of Mounting Holes | 8 |
| Net Weight | 4.2 lbs./ 1.9 kg. |
| Shipping Weight | 5.3 lbs./ 2.4 kg. |
|
MATERIALS |
|
| Basket | Steel |
| Cone | Paper |
| Cone Shape | Exponential |
| Surround Shape | Double Roll |
| Spider | Single |
| Former Material | Glass Fiber |
| Voice Coil | Copper |
| Magnet | Neodymium |
|
THIELE-SMALL
PARAMETERS |
|
|
Resonant Frequency (fs) |
52 Hz |
|
Impedance
(Re) |
5.5 ohms |
| Electrical Factor(Qes) | .32 |
| Mechanical Q (Qms) | 4.3 |
| Total Q (Qts) | .3 |
| Compliance Equiv. Vol. (Vas) | 64 Liters/2.25cu. ft. |
| Surface Area of Cone (Sd)m2 | 0.0522m2 |
| Voice Coil Overhang (Xmax) | 4.5mm |
| Reference Efficiency | 3.4% |
| Diaphragm Mass (Mms) | 55g |
| BL Factor | 17.5 T-M |
| Coil Inductance (Le) | 1.1mH |

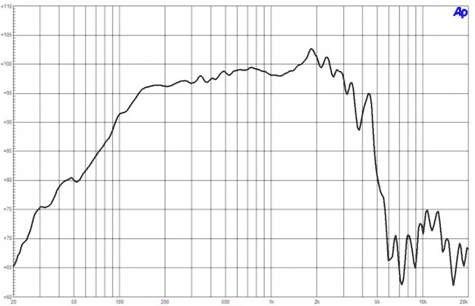

| FREQUENCY RESPONSE | |
 |
|

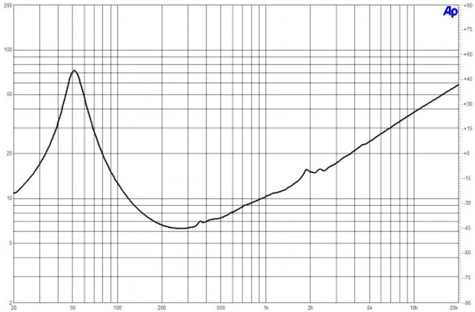

| IMPEDANCE CURVE | |
 |
|
