THE B&C 12FW76 HAS A HIGH EFFICIENCY OF 100DB SPL WITH GOOD POWER HANDLING OF 500 WATTS AES & 1,000 WATTS PROGRAM! |
|
|
|
12FW76 |
|
Item Price: $218.88 |
|
|
B & C PROFESSIONAL COMPONENTS |
|

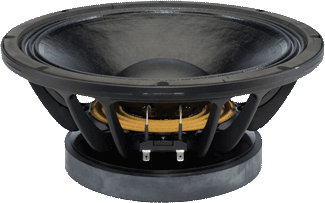

12FW76 - 12" MIDRANGE / MID-BASS SPEAKER |
|
THE B&C 12FW76 HAS A HIGH EFFICIENCY OF 100DB SPL WITH GOOD POWER HANDLING OF 500 WATTS AES & 1,000 WATTS PROGRAM! |
|
|
|
12FW76 |
|
Item Price: $218.88 |
|
|
SPEAKER
MODEL |
12FW76 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
12" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
500
Watts |
| Program Power | 1,000 Watts |
|
Frequency
Response |
55Hz
- 3.0kHz |
|
Sensitivity
(1W/1m) |
100dB |
|
Voice
Coil Diameter |
3"
/ 76mm |
| Winding Material | Copper |
| Former Material | Glass Fibre |
| Winding Depth | .75" /19mm |
| Magnetic Gap Depth | .43" / 11mm |
| Flux Density | 1.35T |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
12.4" / 315mm |
| Bolt Circle Diameter | 11.7" / 298mm |
| Baffle Cutout Diameter | 11.1" / 283mm |
| Depth | 5.79" / 147mm |
| Flange & Gasket Thickness | .47" / 12mm |
| No. Of Mounting Holes | 8 |
| Net Weight | 18.7 lbs./ 8.5 kg. |
| Shipping Weight | 20.3 lbs./ 9.2 kg. |
|
THIELE-SMALL
PARAMETERS |
|
|
Resonant Frequency (fs) |
54 Hz |
|
Impedance
(Re) |
5.1 ohms |
| Electrical Factor(Qes) | .18 |
| Mechanical Q (Qms) | 3.8 |
| Total Q (Qts) | .18 |
| Compliance Equiv. Vol. (Vas) | 45 Liters/1.6cu. ft. |
| Voice Coil Overhang (Xmax) | 7.0mm |
| Reference Efficiency | 3.7% |
| BL Factor | 26.4 T-M |
| Surface Area of Cone (Sd)m2 | 0.0522m2 |
| Diaphragm Mass (Mms) | 75 Grams |
| Coil Inductance (Le) | 1.4mH |

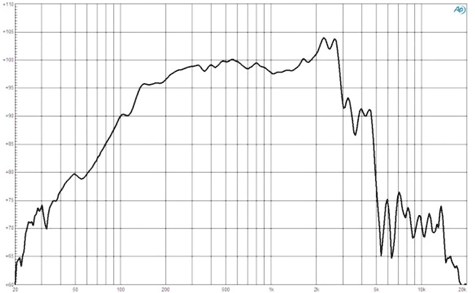

| FREQUENCY RESPONSE GRAPH | |
 |
|

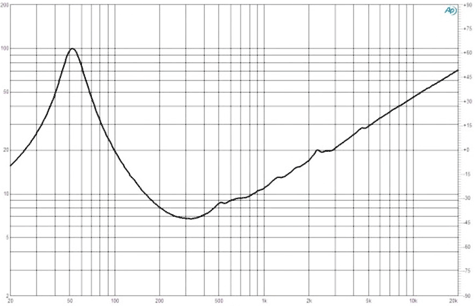

| IMPEDANCE CURVE | |
 |
|
| PREDICTED FREQUENCY RESPONSE | |
 |
|
