THE B&C 12NCX 12 INCH COAXIAL SPEAKER IS A GREAT CHOICE FOR HIGH QUALITY STAGE MONITOR SPEAKERS! |
|
|
|
12NCX |
|
No Longer Available |
|
|
B & C PROFESSIONAL COMPONENTS |
|

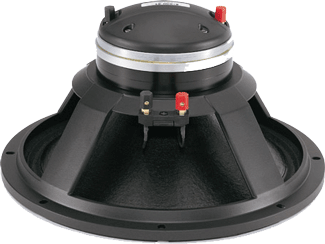

12NCX - 12" COAXIAL SPEAKER |
|
THE B&C 12NCX 12 INCH COAXIAL SPEAKER IS A GREAT CHOICE FOR HIGH QUALITY STAGE MONITOR SPEAKERS! |
|
|
|
12NCX |
|
No Longer Available |
|
|
SPEAKER
MODEL |
12NCX |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
12" |
|
Impedance |
8
ohms |
|
Frequency
Response |
60Hz
- 18kHz |
| Dispersion | 70° |
|
LOW FREQUENCY WOOFER |
|
| Sensitivity (1W/1m) | 97dB |
|
RMS
Power Rating |
200
Watts |
| Program Power | 400 Watts |
|
Voice Coil Diameter |
2.5"
/ 65mm |
| Winding Material | Aluminum |
|
HIGH FREQUENCY DRIVER |
|
|
Sensitivity (1W/1m) |
107dB |
| RMS Power Rating | 50 Watts |
| Program Power | 100 Watts |
| Voice Coil Diameter | 2.5" / 65mm |
| Winding Material | Aluminum |
| Diaphragm Material | Titanium |
| Max. Recom. Crossover | 1.2kHz |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
12.4" / 316mm |
| Bolt Circle Diameter | 11.6" / 296mm |
| Baffle Cutout Diameter | 11.1" / 282mm |
| Depth | 6.6" / 167mm |
| Flange & Gasket Thickness | .625" / 16mm |
| Net Weight | 9.0 lbs./ 4.1 kg. |
|
THIELE-SMALL
PARAMETERS |
|
|
Resonant Frequency (fs) |
59 Hz |
|
Impedance
(Re) |
5.8 ohms |
| Electrical Factor(Qes) | .58 |
| Mechanical Q (Qms) | 4.2 |
| Total Q (Qts) | .51 |
| Compliance Equiv. Vol. (Vas) | 65.14 Liters/2.3cu. ft. |
| Voice Coil Overhang (Xmax) | 3.0mm |
| Reference Efficiency | 2.2% |
| BL Factor | 12.8 T-M |
| Coil Inductance (Le) | 1.2mH |
|

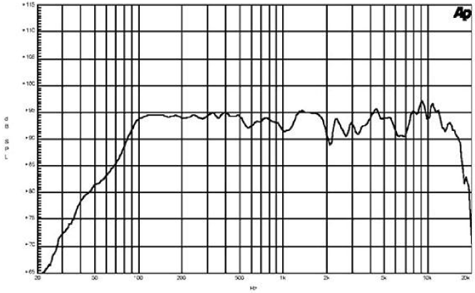

FREQUENCY RESPONSE |
|
|
|
|
|

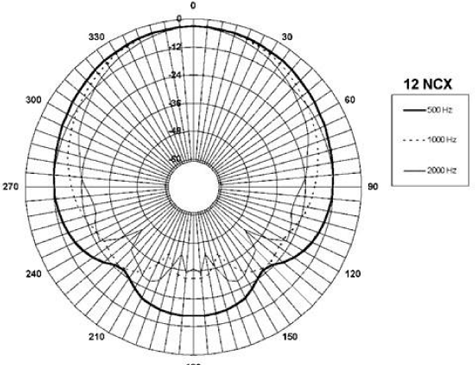

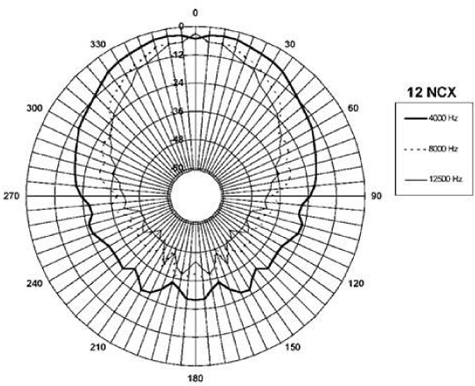

HORIZONTAL & VERTICAL COVERAGE |
|
|
|
|
