B&C 12PLB100 DELIVERS A STRONG TIGHT MID-BASS SOUND FOR QUALITY 2 OR 3-WAY SPEAKER SYSTEMS! |
|
|
|
12PLB100 |
|
Item Price: $318.60 |
|
|
B & C PROFESSIONAL COMPONENTS |
|
12PLB100 - 12" POWERFUL SPEAKER |
|
B&C 12PLB100 DELIVERS A STRONG TIGHT MID-BASS SOUND FOR QUALITY 2 OR 3-WAY SPEAKER SYSTEMS! |
|
|
|
12PLB100 |
|
Item Price: $318.60 |
|
|
SPEAKER
MODEL |
12PLB100 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
12" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
600
Watts |
| Program Power | 1,200 Watts |
|
Frequency
Response |
50Hz
- 2.5kHz |
|
Sensitivity
(1W/1m) |
97dB |
|
Voice
Coil Diameter |
4"
/ 100mm |
| Winding Material | Aluminum |
| Former Material | Glass Fibre |
| Winding Depth | .91" / 23mm |
| Magnetic Gap Depth | .39" / 10mm |
| Flux Density | 1.0T |
|
MATERIALS |
|
| Basket | Cast Aluminum |
| Cone | Waterproof Paper |
| Cone Shape | Radial |
| Surround Shape | Triple Roll |
| Voice Coil | Aluminum |
| Demodulation Ring | Aluminum |
| Magnet | Ferrite |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
12.5" / 319mm |
| Bolt Circle Diameter | 11.8" / 299mm |
| Baffle Cutout Diameter | 11.1" / 282mm |
| Depth | 4.8" / 122mm |
| Flange & Gasket Thickness | .47" / 12mm |
| No. Of Mounting Holes | 8 |
| Net Weight | 18.52 lbs./ 8.4 kg. |
| Shipping Weight | 20.5 lbs./ 9.3 kg. |
|
THIELE-SMALL PARAMETERS |
|
|
Resonant Frequency (fs) |
50 Hz |
|
Impedance
(Re) |
5.1 ohms |
| Electrical Factor (Qes) | .38 |
| Mechanical Q (Qms) | 9.2 |
| Total Q (Qts) | .37 |
| Compliance Equiv. Vol. (Vas) | 47 Liters/1.66cu. ft. |
| Voice Coil Overhang (Xmax) | 9.0mm |
| Reference Efficiency | 1.7% |
| Moving Mass (Mms) | 77 Grams |
| Surface Area of Cone (Sd)m2 | 0.0531m2 |
| BL Factor | 18.4 T-M |
| Coil Inductance (Le) | 1.6mH |

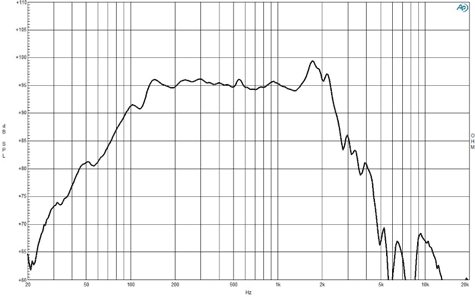

| FREQUENCY RESPONSE GRAPH | |
 |
|

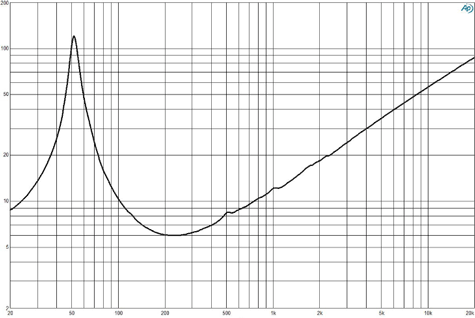

| IMPEDANCE GRAPH | |
 |
|

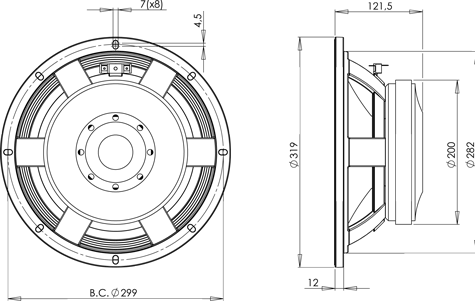

| MOUNTING DIMENSIONS | |
 |
|
