9.0MM XMAX FOR CLEAN BASS W/ 2,000 WATTS POWER HANDLING! |
|
|
|
12TBX100 |
|
Item Price: $325.46 |
|
|
B & C PROFESSIONAL COMPONENTS |
|

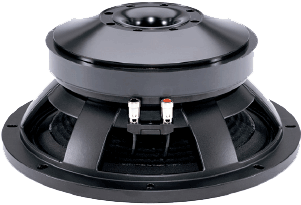

12TBX100 - 12" HIGH POWER WOOFER |
|
9.0MM XMAX FOR CLEAN BASS W/ 2,000 WATTS POWER HANDLING! |
|
|
|
12TBX100 |
|
Item Price: $325.46 |
|
|
SPEAKER
MODEL |
12TBX100 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
12" |
|
Impedance |
8
ohms |
|
RMS
Power Rating |
1,000
Watts |
| Program Power | 2,000 Watts |
|
Frequency
Response |
45Hz
- 1.5kHz |
|
Sensitivity
(1W/1m) |
95dB |
|
Voice
Coil Diameter |
4"
/ 100mm |
| Winding Material | Copper |
| Former Material | Fiber Glass |
| Winding Depth | 1.0" / 25mm |
| Magnetic Gap Depth | .5" / 12mm |
| Flux Density | 1.1T |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
12.56" / 319mm |
| Bolt Circle Diameter | 11.77" / 299mm |
| Baffle Cutout Diameter | 11.1" / 282mm |
| Depth | 5.5" / 140mm |
| Flange & Gasket Thickness | .625" / 16mm |
| No. Of Mounting Holes | 8 |
| Net Weight | 22.4 lbs./ 10.2 kg. |
|
THIELE-SMALL PARAMETERS |
|
|
Resonant Frequency (fs) |
42 Hz |
|
Impedance
(Re) |
5.1 ohms |
| Electrical Factor(Qes) | .27 |
| Mechanical Q (Qms) | 6.9 |
| Total Q (Qts) | .26 |
| Compliance Equiv. Vol. (Vas) | 37.5 Liters/1.3cu. ft. |
| Voice Coil Overhang (Xmax) | 9.0mm |
| Reference Efficiency | 1.15% |
| BL Factor | 25.5 T-M |
| Surface Area of Cone (Sd)m2 | 0.0823m2 |
| Coil Inductance (Le) | 1.6mH |

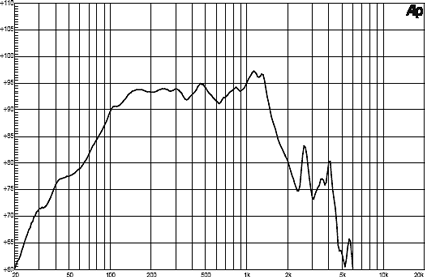

| SPL VS. FREQUENCY | |
 |
|
