B & C  PROFESSIONAL COMPONENTS

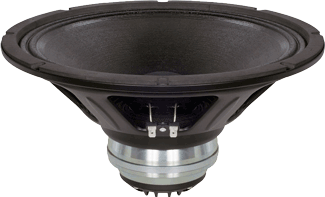

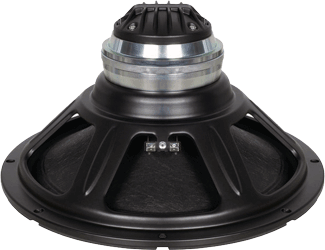

12CLX64 - 12" COAXIAL SPEAKER

THE 12CLX64 IS A VERY HIGH QUALITY 12" COAXIAL SPEAKER FOR SEALED AND OPEN BAFFLE SPEAKER SYSTEMS!

B&C 12CLX64B&C 12CLX64

12CLX64

Item Price: $330.34

SPEAKER MODEL

12CLX64

SPECIFICATIONS

Nominal Basket Diameter

12" / 320mm

Impedance

8 ohms

Frequency Response

54Hz - 18kHz

Dispersion 60

LOW FREQUENCY WOOFER

Sensitivity (1W/1m) 96.2dB
RMS Power Rating 250 Watts
Program Power 500 Watts

Voice Coil Diameter

2.5" / 64mm

Demodulation Ring Aluminum
Winding Material Copper

HIGH FREQUENCY DRIVER

Sensitivity (1W/1m) 106dB
RMS Power Rating 70 Watts
Program Power 140 Watts
Voice Coil Diameter 2" / 51mm
Basket Steel
Winding Material Aluminum
Diaphragm Material HT Polymer
Magnet Neodymium
Max. Recom. Crossover 1.2kHz

MOUNTING INFORMATION

Overall Diameter 12.32" / 313mm
Bolt Circle Diameter 11.73" / 298mm
Baffle Cutout Diameter 11.1" / 282mm
Depth 6.46" / 164mm
Flange & Gasket Thickness .35" / 9mm
Net Weight 7.28 lbs./ 3.3 kg.
Shipping Weight 10.14 lbs./ 4.6 kg.

  THIELE-SMALL PARAMETERS

Resonant Frequency (fs)

54 Hz
Impedance (Re) 5.6 ohms
Electrical Factor(Qes) .61
Mechanical Q (Qms) 10.1
Total Q (Qts) .57
Compliance Equiv. Vol. (Vas) 74 Liters/2.61cu. ft.
Voice Coil Overhang (Xmax) 5.3mm
Reference Efficiency 1.82%
Surface Area of Cone (Sd)m2 0.0809m2
Diaphragm Mass (Mms) 45.3 grams
BL Factor 11.86 T-M
Coil Inductance (Le) 0.14mH

FREQUENCY RESPONSE

B&C 12CLX64 Frequency

IMPEDANCE GRAPH

B&C 12CLX64 Impedance

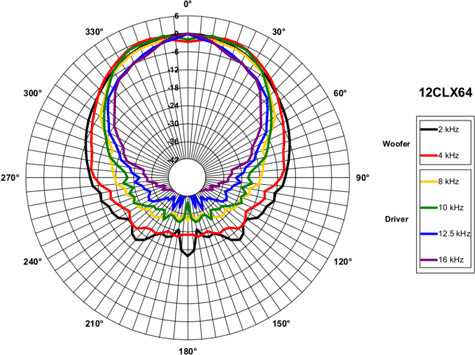

POLAR RESPONSE

B&C 12CLX64 Polar

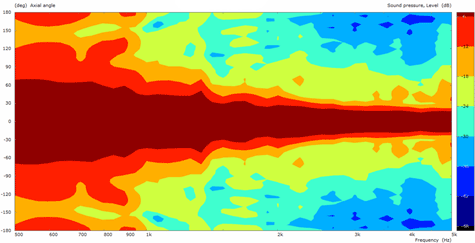

LOW FREQUENCY DIRECTIVITY

B&C 12CLX64 Directivity

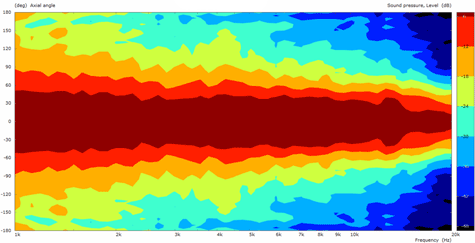

HIGH FREQUENCY DIRECTIVITY

B&C 12CLX64 Directivity
