12FHX76 - 12" COAXIAL SPEAKER

THIS 12" COAXIAL & 2" HF DRIVER WITH A 60° X 40° HORN HELPS TO PROJECT THE UPPER MID & HIGH FREQUENCIES!

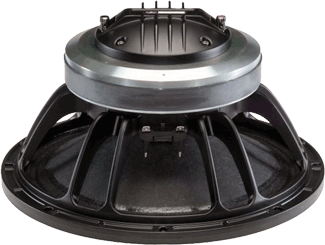

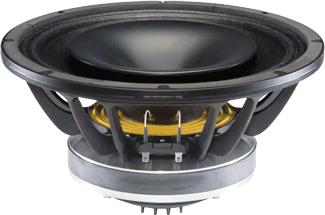

B&C 12FHX76 CoaxialB&C 12FHX76 Coaxial

12FHX76

Item Price: $439.38
Replacement High Frequency Diaphragm - MMD3BTN8M    Item Price: $113.09

SPEAKER MODEL

12FHX76

SPECIFICATIONS

Nominal Basket Diameter

12" / 320mm

Impedance

8 ohms

Frequency Response

45Hz - 18kHz

Dispersion 60° x 40°

LOW FREQUENCY WOOFER
Sensitivity (1W/1m) 98dB
RMS Power Rating 350 Watts
Program Power 700 Watts

Voice Coil Diameter

3" / 76mm
Winding Material Copper

HIGH FREQUENCY DRIVER
Sensitivity (1W/1m) 107dB
RMS Power Rating 80 Watts
Program Power 160 Watts
Voice Coil Diameter 3" / 75mm
Winding Material Aluminum
Diaphragm Material Titanium
Magnet Ferrite
Max. Recom. Crossover 1.2kHz

MOUNTING INFORMATION
Overall Diameter 12.4" / 316mm
Bolt Circle Diameter 11.7" / 298mm
Baffle Cutout Diameter 11.14" / 283mm
Depth 6.69" / 169mm
Flange & Gasket Thickness .51" / 13mm
Net Weight 18.52 lbs./ 8.4 kg.
Shipping Weight 21.38 lbs./ 9.7 kg.

  THIELE-SMALL PARAMETERS

Resonant Frequency (fs)

 48 Hz
Impedance (Re) 5.4 ohms
Electrical Factor(Qes) .36
Mechanical Q (Qms) 5.4
Total Q (Qts) .33
Compliance Equiv. Vol. (Vas) 88 Liters/3.1cu. ft.
Voice Coil Overhang (Xmax) 6.5mm
Reference Efficiency 2.7%
Surface Area of Cone (Sd)m2 0.0809m2
Diaphragm Mass (Mms) 47 grams
BL Factor 14.4 T-M
Coil Inductance (Le) 1.6mH

FREQUENCY RESPONSE

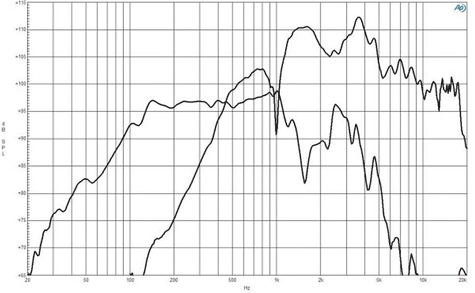

B&C 12FHX76 Frequency

IMPEDANCE CURVE

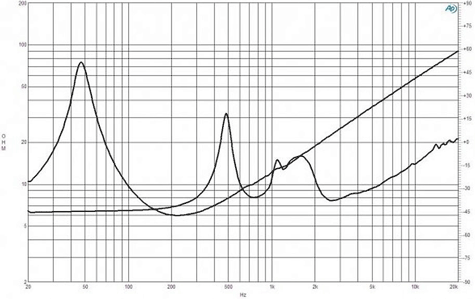

B&C 12FHX76 Impedance

HORIZONTAL COVERAGE

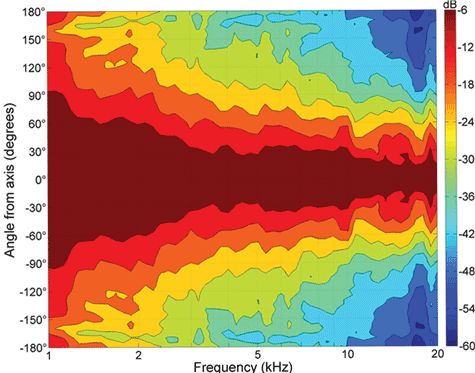

B&C 12FHX76 Horizontal

VERTICAL COVERAGE
B&C 12FHX76 Vertical
HORIZONTAL POLAR COVERAGE

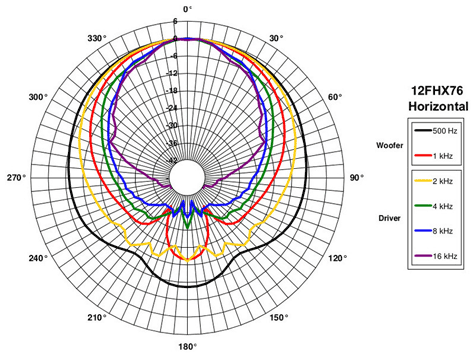

B&C 12FHX76 Polar
HORIZONTAL VERTICAL COVERAGE

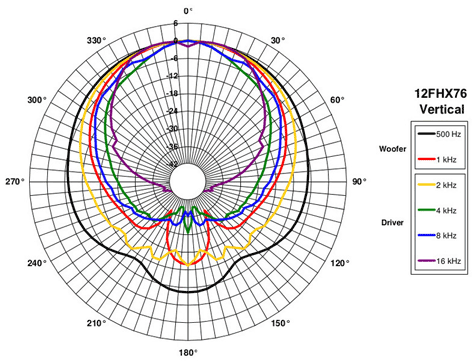

B&C 12FHX76 Vertical
DRAWING

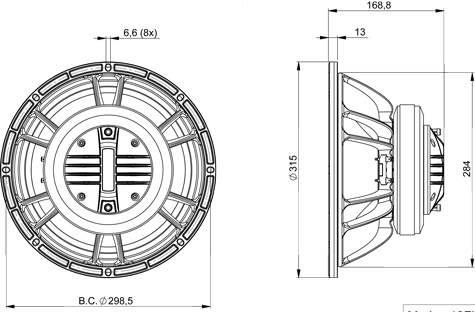

B&C 12FHX76 Drawing
