THIS 12" COAXIAL & 2" HF DRIVER WITH A 60° X 40° HORN HELPS TO PROJECT THE UPPER MID & HIGH FREQUENCIES! |
|
|
|
12HCX76 |
|
Item Price: $566.64 |
|
|
B & C PROFESSIONAL COMPONENTS |
|
12HCX76 - 12" COAXIAL SPEAKER |
|
THIS 12" COAXIAL & 2" HF DRIVER WITH A 60° X 40° HORN HELPS TO PROJECT THE UPPER MID & HIGH FREQUENCIES! |
|
|
|
12HCX76 |
|
Item Price: $566.64 |
|
Replacement High Frequency Diaphragm - MMD3BTN8M
Item
Price: $114.18 |
|
|
SPEAKER
MODEL |
12HCX76 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
12" |
|
Impedance |
8
ohms |
|
Frequency
Response |
45Hz
- 18kHz |
| Dispersion | 60° x 40° |
|
LOW FREQUENCY WOOFER |
|
| Sensitivity (1W/1m) | 99dB |
|
RMS
Power Rating |
350
Watts |
| Program Power | 700 Watts |
|
Voice Coil Diameter |
3"
/ 76mm |
| Winding Material | Copper |
|
HIGH FREQUENCY DRIVER |
|
|
Sensitivity (1W/1m) |
107dB |
| RMS Power Rating | 80 Watts |
| Program Power | 160 Watts |
| Voice Coil Diameter | 3" / 75mm |
| Winding Material | Aluminum |
| Diaphragm Material | Titanium |
| Magnet | Neodymium |
| Max. Recom. Crossover | 1.2kHz |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
12.4" / 316mm |
| Bolt Circle Diameter | 11.7" / 298mm |
| Baffle Cutout Diameter | 11.14" / 283mm |
| Depth | 6.6" / 168mm |
| Flange & Gasket Thickness | .55" / 14mm |
| Net Weight | 12.3 lbs./ 5.2 kg. |
|
THIELE-SMALL
PARAMETERS |
|
|
Resonant Frequency (fs) |
42 Hz |
|
Impedance
(Re) |
5.0 ohms |
| Electrical Factor(Qes) | .2 |
| Mechanical Q (Qms) | 8.0 |
| Total Q (Qts) | .19 |
| Compliance Equiv. Vol. (Vas) | 120 Liters/4.2cu. ft. |
| Voice Coil Overhang (Xmax) | 4.0mm |
| Reference Efficiency | 4.1% |
| Surface Area of Cone (Sd)m2 | 0.0809m2 |
| Diaphragm Mass (Mms) | 47 grams |
| BL Factor | 17.6 T-M |
| Coil Inductance (Le) | 0.8mH |
|

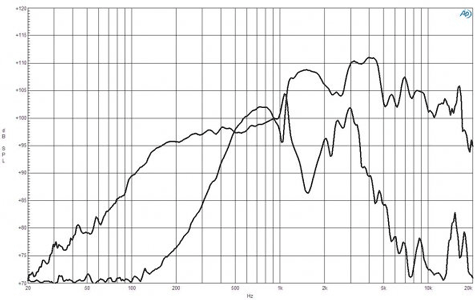

FREQUENCY RESPONSE |
|
|
|
|
|

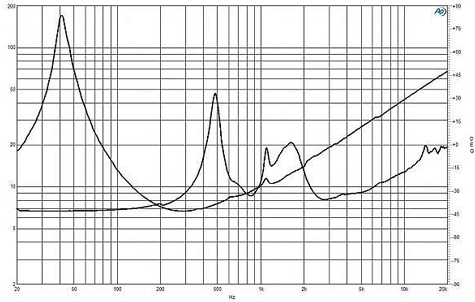

IMPEDANCE CURVE |
|
|
|
|
|
HORIZONTAL COVERAGE |
|
|
|
|
|

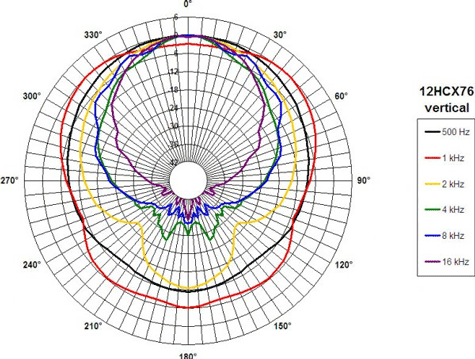

VERTICAL COVERAGE |
|
|
|
|
