ALUMINUM DEMODULATION RING FOR LOWER DISTORTION, HIGH EFFICIENCY OF 101DB SPL W/ 800 WATTS POWER HANDLING! |
|
|
|
12MH32 |
|
Item Price: $240.03 |
|
|
B & C PROFESSIONAL COMPONENTS |
|
12MH32 - 12" MID-BASS SPEAKER |
|
ALUMINUM DEMODULATION RING FOR LOWER DISTORTION, HIGH EFFICIENCY OF 101DB SPL W/ 800 WATTS POWER HANDLING! |
|
|
|
12MH32 |
|
Item Price: $240.03 |
|
|
SPEAKER
MODEL |
12MH32 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
12" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
400
Watts |
| Program Power | 800 Watts |
|
Frequency
Response |
50Hz
- 3.0kHz |
|
Sensitivity
(1W/1m) |
101dB |
|
Voice
Coil Diameter |
3"
/ 76mm |
| Winding Material | Copper |
| Former Material | Fiber Glass |
| Winding Depth | .55" / 14mm |
| Magnetic Gap Depth | .31" / 8mm |
| Flux Density | 1.4T |
|
MATERIALS |
|
| Basket | Cast Aluminum |
| Cone | Paper |
| Cone Shape | Radial |
| Surround Shape | Double Roll |
| Spider | Single |
| Pole Design | T-Pole |
| Voice Coil | Copper |
| Former | Glass Fiber |
| Magnet | Ferrite |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
12.4" / 316mm |
| Bolt Circle Diameter | 11.6" / 296mm |
| Baffle Cutout Diameter | 11.1" / 282mm |
| Depth | 5.24" / 133mm |
| Flange & Gasket Thickness | .49" / 12mm |
| No. Of Mounting Holes | 8 |
| Net Weight | 16.7 lbs./ 7.6 kg. |
| Shipping Weight | 18.5 lbs./ 8.4 kg. |
|
THIELE-SMALL PARAMETERS |
|
|
Resonant Frequency (fs) |
53 Hz |
|
Impedance
(Re) |
5.2 ohms |
| Electrical Factor(Qes) | .2 |
| Mechanical Q (Qms) | 7.2 |
| Total Q (Qts) | .19 |
| Compliance Equiv. Vol. (Vas) | 63 Liters/2.2cu. ft. |
| Voice Coil Overhang (Xmax) | 5.0mm |
| Reference Efficiency | 4.8% |
| BL Factor | 22.3 T-M |
| Diaphragm Mass (Mms) | 54 Grams |
| Surface Area of Cone (Sd)m2 | 0.0522m2 |
| Coil Inductance (Le) | .83mH |

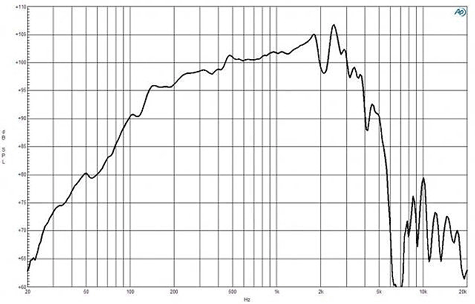

| SPL VS. FREQUENCY | |
 |
|

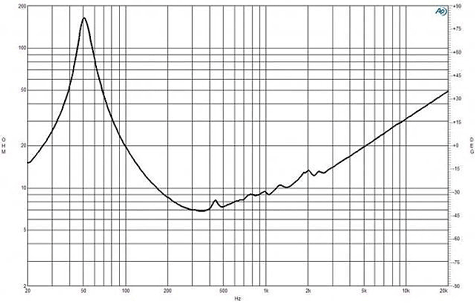

| IMPEDANCE | |
 |
|

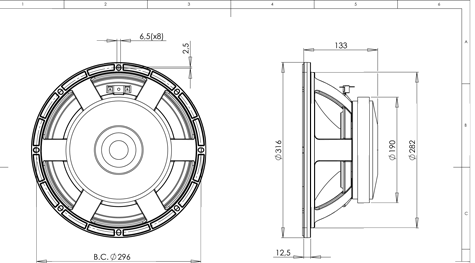

| DIMENSIONAL DRAWING | |
 |
|
