THE B&C 12NBX100 IS A LIGHTWEIGHT NEODYMIUM 12" WOOFER THAT HANDLES 2,000 WATTS PROGRAM W/ A HIGH XMAX OF 10.0MM! |
|
|
|
12NBX100 |
|
4 Ohm Version
Item Price: $390.57 |
|
|
8 Ohm Version
Item Price: $390.57 |
|
|
B & C PROFESSIONAL COMPONENTS |
|

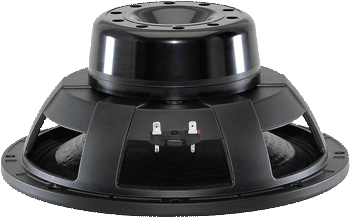

12NBX100 - 12" NEODYMIUM HIGH POWER SUBWOOFER SPEAKER |
|
THE B&C 12NBX100 IS A LIGHTWEIGHT NEODYMIUM 12" WOOFER THAT HANDLES 2,000 WATTS PROGRAM W/ A HIGH XMAX OF 10.0MM! |
|
|
|
12NBX100 |
|
4 Ohm Version
Item Price: $390.57 |
|
|
8 Ohm Version
Item Price: $390.57 |
|
|
SPEAKER MODEL |
12NBX100 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
12" |
|
Impedance |
4 or 8
ohms |
|
RMS
Power Rating |
1,000
Watts |
| Program Power | 2,000 Watts |
|
Frequency
Response |
40Hz
- 1.5kHz |
|
Sensitivity
(1W/1m) |
96dB |
|
Voice
Coil Diameter |
4"
/ 100mm |
| Winding Material | Copper |
| Former Material | Fiberglass |
| Winding Depth | 1.0" / 25mm |
| Magnetic Gap Depth | .43" / 11mm |
| Flux Density | 1.1T |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
12.6" / 320mm |
| Bolt Circle Diameter | 11.8" / 300mm |
| Baffle Cutout Diameter | 11" / 280mm |
| Depth | 5.63" / 143mm |
| Flange & Gasket Thickness | .47" / 12mm |
| No. Of Mounting Holes | 8 |
| Net Weight | 17.6 lbs./ 8 kg. |
| Shipping Weight | 18.9 lbs./ 8.6 kg. |
|
THIELE-SMALL PARAMETERS |
|
|
Resonant Frequency (fs) |
41 Hz |
|
Impedance
(Re) |
5.1 ohms |
| Electrical Factor(Qes) | .21 |
| Mechanical Q (Qms) | 3.9 |
| Total Q (Qts) | .22 |
| Compliance Equiv. Vol. (Vas) | 51 Liters/1.8cu. ft. |
| Surface Area of Cone (Sd)m2 | 0.0531m2 |
| Voice Coil Overhang (Xmax) | 10.0mm |
| Reference Efficiency | 1.45% |
| Diaphragm Mass (Mms) | 117g |
| BL Factor | 25.6 T-M |
| Coil Inductance (Le) | 1.9mH |

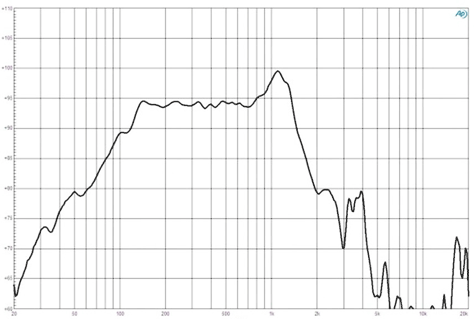

| FREQUENCY RESPONSE | |
 |
|

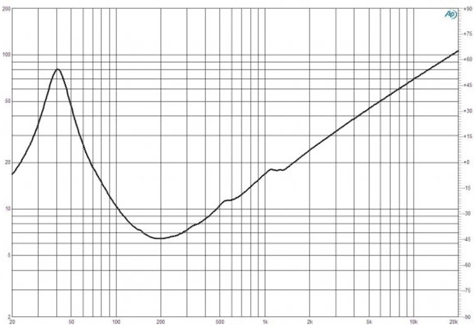

| IMPEDANCE CURVE | |
 |
|

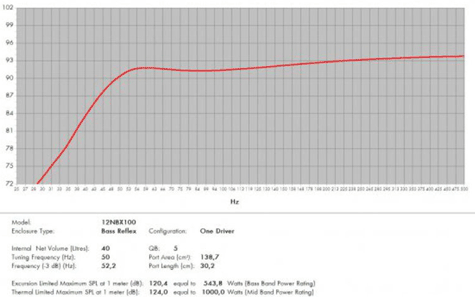

| PREDICTED FREQUENCY RESPONSE | |
 |
|
