THE B&C 12NDL88 HAS WARM MIDS & TIGHT STRONG BASS WITH GOOD POWER HANDLING OF 700 WATTS AES! |
|
|
|
12NDL88 |
|
Item Price: $306.30 |
|
|
B & C PROFESSIONAL COMPONENTS |
|

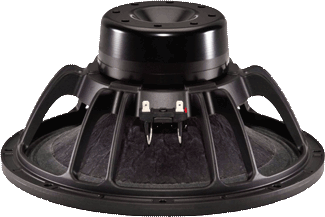

12NDL88 - 12" MID-BASS / BASS SPEAKER |
|
THE B&C 12NDL88 HAS WARM MIDS & TIGHT STRONG BASS WITH GOOD POWER HANDLING OF 700 WATTS AES! |
|
|
|
12NDL88 |
|
Item Price: $306.30 |
|
|
SPEAKER
MODEL |
12NDL88 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
12" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
700
Watts |
| Program Power | 1,400 Watts |
|
Frequency
Response |
50Hz
- 3.0kHz |
|
Sensitivity
(1W/1m) |
98dB |
|
Voice
Coil Diameter |
3.5"
/ 88mm |
| Winding Material | Aluminum |
| Former Material | Glass Fibre |
| Winding Depth | .85" / 21mm |
| Magnetic Gap Depth | .4" / 10.5mm |
| Flux Density | 1.15T |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
12.4" / 315mm |
| Bolt Circle Diameter | 11.73" / 298mm |
| Baffle Cutout Diameter | 11.1" / 282mm |
| Depth | 5.51" / 140mm |
| Flange & Gasket Thickness | .51" / 13mm |
| No. Of Mounting Holes | 8 |
| Net Weight | 8.6 lbs./ 3.9 kg. |
| Shipping Weight | 9.92 lbs./ 4.5 kg. |
|
THIELE-SMALL
PARAMETERS |
|
|
Resonant Frequency (fs) |
51 Hz |
|
Impedance
(Re) |
5.0 ohms |
| Electrical Factor(Qes) | .29 |
| Mechanical Q (Qms) | 5.0 |
| Total Q (Qts) | .27 |
| Compliance Equiv. Vol. (Vas) | 52 Liters/1.84cu. ft. |
| Voice Coil Overhang (Xmax) | 8.0mm |
| Reference Efficiency | 2.3% |
| BL Factor | 19.9 T-M |
| Surface Area of Cone (Sd)m2 | 0.0522m2 |
| Diaphragm Mass (Mms) | 71 Grams |
| Coil Inductance (Le) | 1.3mH |
| FREQUENCY RESPONSE GRAPH | |
 |
|
| IMPEDANCE CURVE | |
 |
|
| PREDICTED FREQUENCY RESPONSE | |
 |
|
