THIS 12" HANDLES 1,000 WATTS PROGRAM & WEIGHS ONLY 10.6LBS! |
|
|
|
12NW76 |
|
Item Price: $295.62 |
|
|
B & C PROFESSIONAL COMPONENTS |
|
12 NW76 - 12" NEODYMIUM PRO WOOFER |
|
THIS 12" HANDLES 1,000 WATTS PROGRAM & WEIGHS ONLY 10.6LBS! |
|
|
|
12NW76 |
|
Item Price: $295.62 |
|
|
SPEAKER
MODEL |
12NW76 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
12" |
|
Impedance |
8
ohms |
|
RMS
Power Rating |
500 Watts |
| Program Power | 1,000 Watts |
|
Frequency
Response |
40Hz
- 2.0kHz |
|
Sensitivity
(1W/1m) |
98.5dB |
|
Voice
Coil Diameter |
3"
/ 76mm |
| Winding Material | Copper |
| Former Material | Fiberglass |
| Winding Depth | .75" / 19mm |
| Magnetic Gap Depth | .43" / 11mm |
| Flux Density | 1.3T |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
12.4" / 315mm |
| Bolt Circle Diameter | 11.73" / 298mm |
| Baffle Cutout Diameter | 11.1" / 282mm |
| Depth | 5.8" / 147mm |
| Flange & Gasket Thickness | .5" / 13mm |
| No. Of Mounting Holes | 8 |
| Net Weight | 10.6 lbs./ 4.8 kg. |
|
THIELE-SMALL
PARAMETERS |
|
|
Resonant Frequency (fs) |
40 Hz |
|
Impedance
(Re) |
5.3 ohms |
| Electrical Factor(Qes) | .17 |
| Mechanical Q (Qms) | 3.7 |
| Total Q (Qts) | .16 |
| Compliance Equiv. Vol. (Vas) | 76 Liters/2.7cu. ft. |
| Surface Area of Cone (Sd)m2 | 0.0522m2 |
| Voice Coil Overhang (Xmax) | 8.0mm |
| Reference Efficiency | 2.8% |
| Diaphragm Mass (Mms) | 77g |
| BL Factor | 25.5 T-M |
| Coil Inductance (Le) | 1.25mH |

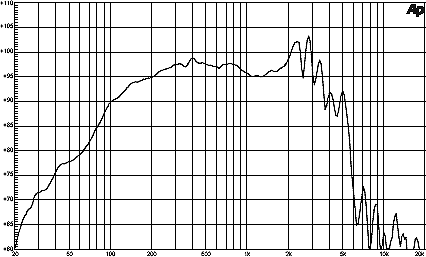

| SPL VS. FREQUENCY | |
 |
|
