B&C 12SW115-8 IS A LIGHTWEIGHT 12" SUBWOOFER THAT HANDLES 3,400 WATTS PROGRAM W/ A HIGH XMAX OF 13.8MM! |
|
|
|
B&C 21SW115-8 |
|
8 Ohm Version
Item Price: $672.78 Free UPS Ground Shipping in the U.S. |
|
|
B & C PROFESSIONAL COMPONENTS |
|
12SW115-8 - 12" NEODYMIUM HIGH POWER SUBWOOFER SPEAKER |
|
B&C 12SW115-8 IS A LIGHTWEIGHT 12" SUBWOOFER THAT HANDLES 3,400 WATTS PROGRAM W/ A HIGH XMAX OF 13.8MM! |
|
|
|
B&C 21SW115-8 |
|
8 Ohm Version
Item Price: $672.78 Free UPS Ground Shipping in the U.S. |
|
|
SPEAKER MODEL |
12SW115-8 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
12" |
|
Impedance |
8
ohms |
|
RMS
Power Rating |
1,700
Watts |
| Program Power | 3,400 Watts |
|
Frequency
Response |
40Hz
- 1.5kHz |
|
Sensitivity
(1W/1m) |
92.5dB |
|
Voice
Coil Diameter |
4.5"
/ 115mm |
| Winding Material | Copper |
| Former Material | Fiberglass |
| Winding Depth | 1.36" / 34.5mm |
| Magnetic Gap Depth | .55" / 14mm |
| Flux Density | 1.12T |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
12.4" / 315mm |
| Bolt Circle Diameter | 11.73" / 298mm |
| Baffle Cutout Diameter | 11.1" / 283mm |
| Depth | 6.6" / 167mm |
| Flange & Gasket Thickness | .5" / 12mm |
| No. Of Mounting Holes | 8 |
| Net Weight | 22.93 lbs./ 10.4 kg. |
|
THIELE-SMALL PARAMETERS |
|
|
Resonant Frequency (fs) |
38 Hz |
|
Impedance
(Re) |
5.1 ohms |
| Electrical Factor(Qes) | .26 |
| Mechanical Q (Qms) | 9.3 |
| Total Q (Qts) | .25 |
| Compliance Equiv. Vol. (Vas) | 34 Liters/1.2cu. ft. |
| Surface Area of Cone (Sd)m2 | 0.0522m2 |
| Voice Coil Overhang (Xmax) | 13.8mm |
| Reference Efficiency | .7% |
| Diaphragm Mass (Mms) | 198 Grams |
| BL Factor | 30.3 T-M |
| Coil Inductance (Le) | 1.9mH |
| FREQUENCY RESPONSE | |
 |
|
| IMPEDANCE CURVE | |
 |
|

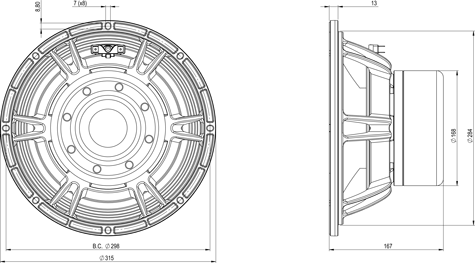

| DRAWING | |
 |
|
