THE B&C 15CL76 IS A LIGHTWEIGHT 15" SPEAKER WITH A 3" VOICE COIL, HIGH 98.5DB SPL & 800 WATTS POWER HANDLING! |
|
|
|
Item Price: $219.70 |
|
B & C PROFESSIONAL COMPONENTS |
|

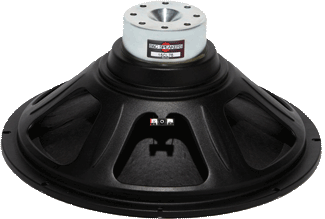

15CL76 - 15" NEODYMIUM SPEAKER |
|
THE B&C 15CL76 IS A LIGHTWEIGHT 15" SPEAKER WITH A 3" VOICE COIL, HIGH 98.5DB SPL & 800 WATTS POWER HANDLING! |
|
|
|
Item Price: $219.70 |
|
SPEAKER
MODEL |
15CL76 |
|
SPECIFICATIONS |
|
|
Nominal Basket Diameter |
15" |
|
Impedance |
8 ohms |
|
RMS Power Rating |
400 Watts |
| Program Power | 800 Watts |
|
Frequency Response |
40Hz - 3.0kHz |
|
Sensitivity (1W/1m) |
98.5dB |
|
Voice Coil Diameter |
3" / 76mm |
| Winding Material | Copper |
| Former Material | Fiberglass |
| Winding Depth | .75" / 19mm |
| Magnetic Gap Depth | .43" / 11mm |
| Flux Density | 1.15T |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
15.31" / 389mm |
| Bolt Circle Diameter | 14.72" / 374mm |
| Baffle Cutout Diameter | 13.9" / 353mm |
| Depth | 6.73" / 171mm |
| Flange & Gasket Thickness | .43" / 11mm |
| No. Of Mounting Holes | 8 |
| Net Weight | 7 lbs./ 3.2 kg. |
| Shipping Weight | 8.1 lbs./ 3.7 kg. |
|
THIELE-SMALL
PARAMETERS |
|
|
Resonant Frequency (fs) |
42 Hz |
|
Impedance
(Re) |
5.1 ohms |
| Electrical Factor (Qes) | .34 |
| Mechanical Q (Qms) | 7.9 |
| Total Q (Qts) | .33 |
| Compliance Equiv. Vol. (Vas) | 135 Liters/4.8cu. ft. |
| Surface Area of Cone (Sd)m2 | 0.0855m2 |
| Voice Coil Overhang (Xmax) | 7.0mm |
| Reference Efficiency | 2.9% |
| Diaphragm Mass (Mms) | 108 Grams |
| BL Factor | 21 T-M |
| Coil Inductance (Le) | 1.3mH |

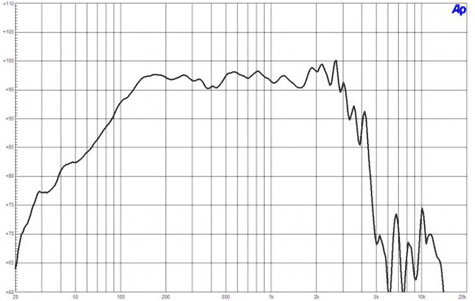

| FREQUENCY RESPONSE GRAPH | |
 |
|

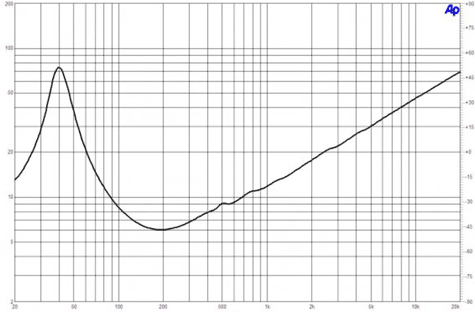

| IMPEDANCE CURVE | |
 |
|
