THE B&C 15PS100 HAS A HIGH 8.0MM XMAX WORKS GREAT FOR SUBWOOFER SYSTEMS FOR A CLEAN PUNCHY BASS!
15PS100
4 Ohm Version
Item Price: $283.17
8 Ohm Version
Item Price: $283.17
|
B & C PROFESSIONAL COMPONENTS |
|

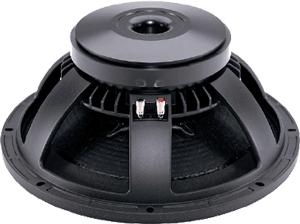

15 PS100 - 15" HIGH POWER WOOFER |
|
THE B&C 15PS100 HAS A HIGH 8.0MM XMAX WORKS GREAT FOR SUBWOOFER SYSTEMS FOR A CLEAN PUNCHY BASS! |
|
|
|
15PS100 |
|
4 Ohm Version
Item Price: $283.17 |
|
|
8 Ohm Version
Item Price: $283.17 |
|
|
SPEAKER
MODEL |
15PS100 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
15" |
|
Impedance |
4 & 8
ohms |
|
RMS
Power Rating |
700
Watts |
| Program Power | 1,400 Watts |
|
Frequency
Response |
35Hz - 1.0kHz |
|
Sensitivity
(1W/1m) |
94.5dB |
|
Voice
Coil Diameter |
4"
/ 100mm |
| Winding Material | Copper |
| Former Material | Glass Fibre |
| Winding Depth | .83" / 21mm |
| Magnetic Gap Depth | .4" / 10.5mm |
| Flux Density | 1.05T |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
15.5" / 394mm |
| Bolt Circle Diameter | 14.6" / 374mm |
| Baffle Cutout Diameter | 13.9" / 355mm |
| Depth | 6.7" / 170mm |
| Flange & Gasket Thickness | .625" / 16mm |
| No. Of Mounting Holes | 8 |
| Net Weight | 21.5 lbs./ 9.8 kg. |
|
THIELE-SMALL PARAMETERS |
|
|
Resonant Frequency (fs) |
33 Hz |
|
Impedance
(Re) |
5.3 ohms |
| Electrical Factor(Qes) | .33 |
| Mechanical Q (Qms) | 4.8 |
| Total Q (Qts) | .31 |
| Compliance Equiv. Vol. (Vas) | 152 Liters/5.3cu. ft. |
| Voice Coil Overhang (Xmax) | 8.0mm |
| Reference Efficiency | 1.8% |
| BL Factor | 22.5 T-M |
| Coil Inductance (Le) | 2.1mH |
