THE B&C 15HCX76 COAXCIAL SPEAKER HAS A VERY SMOOTH SOUNDING HIGHS & WARM TIGHT SOUNDING BASS! |
|
|
|
15HCX76 |
|
Item Price: $630.60 |
|
|
B & C PROFESSIONAL COMPONENTS |
|
15HCX76 - 15" COAXIAL SPEAKER |
|
THE B&C 15HCX76 COAXCIAL SPEAKER HAS A VERY SMOOTH SOUNDING HIGHS & WARM TIGHT SOUNDING BASS! |
|
|
|
15HCX76 |
|
Item Price: $630.60 |
|
|
SPEAKER
MODEL |
15HCX76 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
15" |
|
Impedance |
8
ohms |
|
Frequency
Response |
40Hz
- 18kHz |
| Dispersion | 60° x 40° |
|
LOW FREQUENCY WOOFER |
|
| Sensitivity (1W/1m) | 99dB |
|
AES
Power Rating |
400
Watts |
| Program Power | 800 Watts |
|
Voice Coil Diameter |
3"
/ 76mm |
| Winding Material | Copper |
|
HIGH FREQUENCY DRIVER |
|
|
Sensitivity (1W/1m) |
107dB SPL |
| AES Power Rating | 80 Watts |
| Program Power | 160 Watts |
| Voice Coil Diameter | 3" / 75mm |
| Winding Material | Aluminum |
| Diaphragm Material | Titanium |
| Magnet | Neodymium |
| Max. Recom. Crossover | 1.2kHz |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
15.5" / 393mm |
| Bolt Circle Diameter | 14.7" / 374mm |
| Baffle Cutout Diameter | 13.94" / 354mm |
| Depth | 7.87" / 200mm |
| Flange & Gasket Thickness | .625" / 16mm |
| Net Weight | 12.3 lbs./ 5.6 kg. |
| Shipping Weight | 15.4 lbs./ 7.0 kg. |
|
THIELE-SMALL
PARAMETERS |
|
|
Resonant Frequency (fs) |
38 Hz |
|
Impedance
(Re) |
5.1 ohms |
| Electrical Factor(Qes) | .3 |
| Mechanical Q (Qms) | 5.8 |
| Total Q (Qts) | .28 |
| Compliance Equiv. Vol. (Vas) | 246 Liters/8.64cu. ft. |
| Voice Coil Overhang (Xmax) | 4.5mm |
| Reference Efficiency | 3.7% |
| Surface Area of Cone (Sd)m2 | 0.0855m2 |
| Diaphragm Mass (Mms) | 82 grams |
| BL Factor | 17.8 T-M |
| Coil Inductance (Le) | 0.9mH |
|

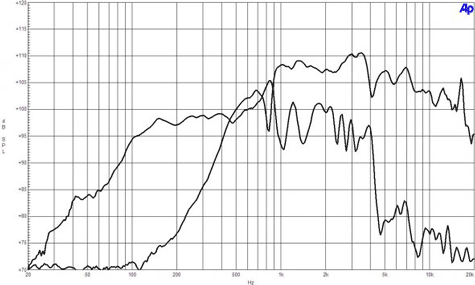

FREQUENCY RESPONSE |
|
|
|
|
|
|
|
|

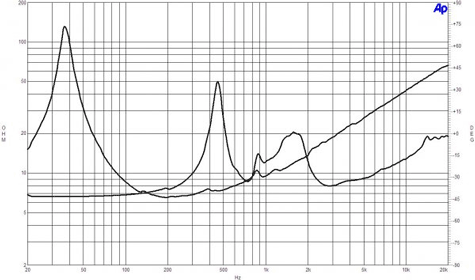

IMPEDANCE CURVE |
|
|
|
|
|

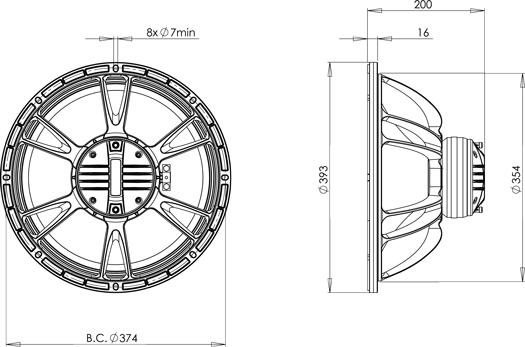

DIMENSIONAL DRAWING |
|
|
|
|
|

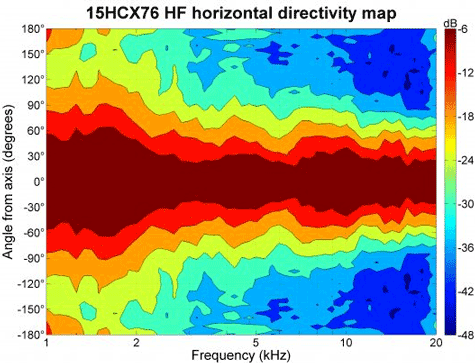

HIGH FREQUENCY HORIZONTAL DIRECTIVITY MAP |
|
|
|
|
|

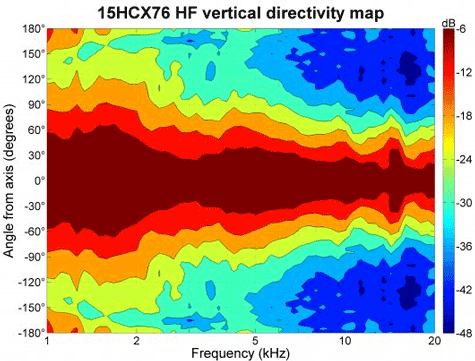

HIGH FREQUENCY VERTICAL DIRECTIVITY MAP |
|
|
|
|
