THE B&C 15NDL88 IS A LIGHTWEIGHT 15" SPEAKER WITH A 3.5" VOICE COIL, HIGH 99DB SPL & 1,400 WATTS POWER HANDLING! |
|
|
|
Item Price: $341.74 |
|
B & C PROFESSIONAL COMPONENTS |
|

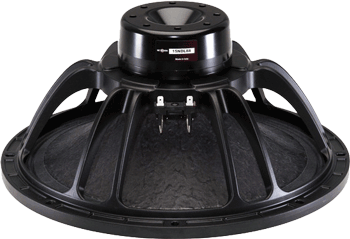

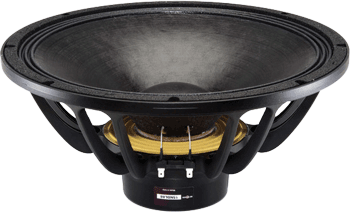

15NDL88 - 15" NEODYMIUM POWERFUL SPEAKER |
|
THE B&C 15NDL88 IS A LIGHTWEIGHT 15" SPEAKER WITH A 3.5" VOICE COIL, HIGH 99DB SPL & 1,400 WATTS POWER HANDLING! |
|
|
|
Item Price: $341.74 |
|
SPEAKER
MODEL |
15NDL88 |
|
SPECIFICATIONS |
|
|
Nominal Basket Diameter |
15" |
|
Impedance |
8 ohms |
|
RMS Power Rating |
700 Watts |
| Program Power | 1,400 Watts |
|
Frequency Response |
45Hz - 3.0kHz |
|
Sensitivity (1W/1m) |
99dB |
|
Voice Coil Diameter |
3.5" / 88mm |
| Winding Material | Aluminum |
| Former Material | Fiberglass |
| Winding Depth | .85" / 21mm |
| Magnetic Gap Depth | .39" / 10mm |
| Flux Density | 1.15T |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
15.47" / 393mm |
| Bolt Circle Diameter | 14.72" / 374mm |
| Baffle Cutout Diameter | 13.9" / 354mm |
| Depth | 6.97" / 177mm |
| Flange & Gasket Thickness | .51" / 13mm |
| No. Of Mounting Holes | 8 |
| Net Weight | 10.14 lbs./ 4.6 kg. |
| Shipping Weight | 13.01 lbs./ 5.9 kg. |
|
THIELE-SMALL
PARAMETERS |
|
|
Resonant Frequency (fs) |
45 Hz |
|
Impedance
(Re) |
5 ohms |
| Electrical Factor (Qes) | .36 |
| Mechanical Q (Qms) | 6.1 |
| Total Q (Qts) | .34 |
| Compliance Equiv. Vol. (Vas) | 126 Liters/4.45cu. ft. |
| Surface Area of Cone (Sd)m2 | 0.0855m2 |
| Voice Coil Overhang (Xmax) | 8.0mm |
| Reference Efficiency | 3.1% |
| Diaphragm Mass (Mms) | 102 Grams |
| BL Factor | 20.1 T-M |
| Coil Inductance (Le) | 1.25mH |

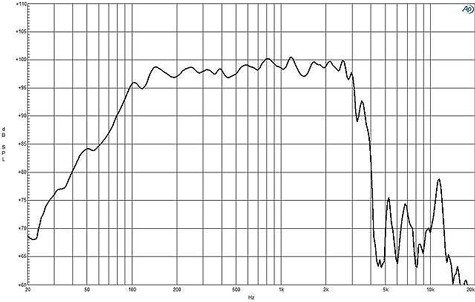

| FREQUENCY RESPONSE GRAPH | |
 |
|

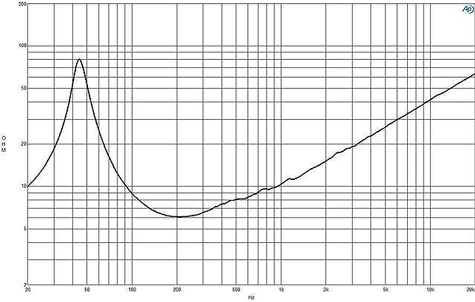

| IMPEDANCE CURVE | |
 |
|
