THE B&C 15SW115 IS A HIGH POWER LIGHTWEIGHT NEODYMIUM 15" SUBWOOFER SPEAKER W/ 3,400 WATTS PROGRAM! |
|
|
|
15SW115 |
|
4 Ohms
Item Price: $634.68 |
|
|
8 Ohms
Item Price: $634.68 |
|
|
B & C PROFESSIONAL COMPONENTS |
|
15SW115 - 15" HIGH POWER NEODYMIUM SUBWOOFER |
|
THE B&C 15SW115 IS A HIGH POWER LIGHTWEIGHT NEODYMIUM 15" SUBWOOFER SPEAKER W/ 3,400 WATTS PROGRAM! |
|
|
|
15SW115 |
|
4 Ohms
Item Price: $634.68 |
|
|
8 Ohms
Item Price: $634.68 |
|
|
SPEAKER
MODEL |
15SW115 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
15" |
|
Impedance |
8
ohms |
|
RMS
Power Rating |
1,700
Watts |
| Program Power | 3,400 Watts |
|
Frequency
Response |
35Hz
- 1.5kHz |
|
Sensitivity
(1W/1m) |
96dB |
|
Voice
Coil Diameter |
4.5"
/ 116mm |
| Winding Material | Copper |
| Former Material | Fiberglass |
| Winding Depth | 1.33" / 34mm |
| Magnetic Gap Depth | .55" / 14mm |
| Flux Density | 1.15T |
| Recommended Enclosure Volume | 3.2 cu. ft. / 90 Liters |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
15.5" / 393mm |
| Bolt Circle Diameter | 14.6" / 374mm |
| Baffle Cutout Diameter | 13.9" / 353mm |
| Depth | 7.6" / 193mm |
| Flange & Gasket Thickness | .63" / 16mm |
| No. Of Mounting Holes | 8 |
| Net Weight | 26.4 lbs./ 12 kg. |
| Shipping Weight | 29.32 lbs./ 13.3 kg. |
|
THIELE-SMALL PARAMETERS |
|
|
Resonant Frequency (fs) |
35 Hz |
|
Impedance
(Re) |
5.2 ohms |
| Electrical Factor(Qes) | .25 |
| Mechanical Q (Qms) | 4.4 |
| Total Q (Qts) | .24 |
| Compliance Equiv. Vol. (Vas) | 110 Liters/3.9cu. ft. |
| Surface Area of Cone (Sd)m2 | 0.0855m2 |
| Voice Coil Overhang (Xmax) | 13.5mm |
| Reference Efficiency | 1.8% |
| Diaphragm Mass (Mms) | 200 Grams |
| BL Factor | 30.0 T-M |
| Coil Inductance (Le) | 1.9mH |

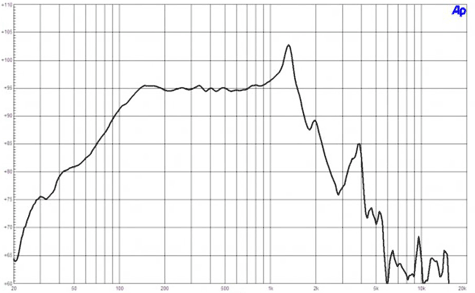

| FREQUENCY RESPONSE GRAPH | |
 |
|
| IMPEDANCE CURVE | |
 |
|

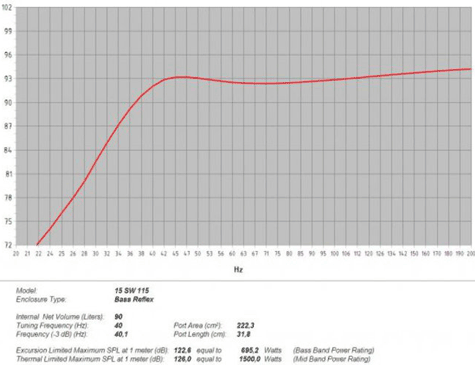

| PREDICTED FREQUENCY RESPONSE | |
 |
|
