THE B&C 18DS100 IS A LIGHTWEIGHT NEODYMIUM 18" SUBWOOFER THAT HAS A 14.5MM XMAX & HANDLES 3,000 WATTS PROGRAM!
	18DS100
	4 Ohm Version Item Price: $542.73
	8 Ohm Version Item Price: $542.73

SPEAKER MODEL	18DS100
SPECIFICATIONS
Nominal Basket Diameter	18" / 460mm
Impedance	4 or 8 ohms
RMS Power Rating	1,500 Watts
Program Power	3,000 Watts
Frequency Response	34Hz - 1kHz
Sensitivity (1W/1m)	97.5dB
Voice Coil Diameter	4" / 100mm
Winding Material	Aluminum
Former Material	Fiberglass
Winding Depth	1.44" / 36.5mm
Magnetic Gap Depth	.63" / 16mm
X Damage (Peak to Peak)	60mm
Flux Density	.7T
Recommended Enclosure Size	7.06 cu. ft / 200 Liters
Recommended Tuning	35Hz
MOUNTING INFORMATION
Overall Diameter	18.11" / 460mm
Bolt Circle Diameter	17.44" / 443mm
Baffle Cutout Diameter	16.61" / 422mm
Depth	9.41" / 239mm
Flange & Gasket Thickness	.63" / 16mm
No. Of Mounting Holes	8
Volume Displaced By Driver	0.35 ft3 / 10 Liters
Net Weight	23.15 lbs./ 10.5 kg.
Shipping Weight	27.12 lbs./ 12.3 kg.
MATERIALS
Basket	Die Cast Aluminum
Cone	Treated Paper
Cone Treatment	Waterproof Front & Back
Surround Shape	Triple Roll
Cone Shape	Radial
Voice Coil	Copper
Pole Design	T-Pole
Spider	Double Silicone
Demodulation Ring	Aluminum
Magnet	Neodymium
THIELE-SMALL PARAMETERS
Resonant Frequency (fs)	34 Hz
Impedance (Re)	4.5 ohms
Electrical Factor(Qes)	.21
Mechanical Q (Qms)	9.5
Total Q (Qts)	.29
Compliance Equiv. Vol. (Vas)	155 Liters/5.47cu. ft.
Voice Coil Overhang (Xmax)	14.5mm
Reference Efficiency	2.1%
Diaphragm Mass (Mms)	278 grams
BL Factor	30 T-M
Surface Area of Cone (Sd)m2	0.1210m2
Coil Inductance (Le)	4.4mH
EBP	113

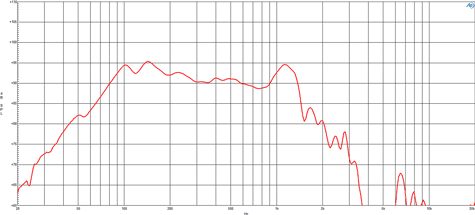

FREQUENCY RESPONSE

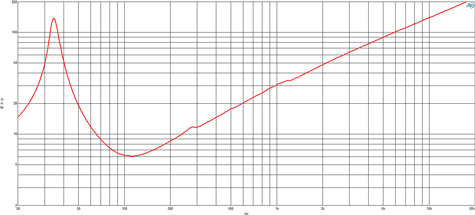

IMPEDANCE

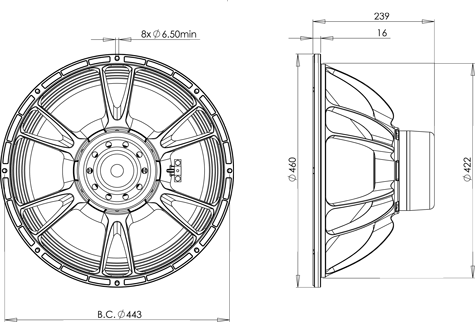

MOUNTING DIMENSIONS
