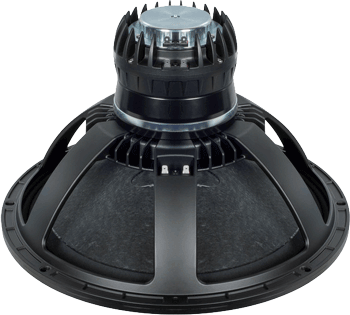

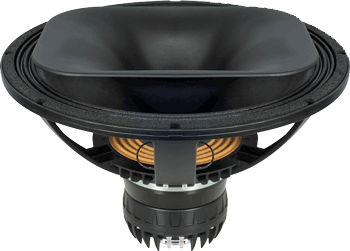

18HTX100 - 18" TRIAXIAL SPEAKER |
|
VERY DETAILED & NATURAL SOUNDING WITH A GOOD POWER HANDLING OF 400 WATTS AES! |
|
|
|
18HTX100 |
|
Item Price: $1,170.24 |
|
|
SPEAKER
MODEL |
18HTX100 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
18" |
|
Impedance |
8
ohms |
|
Frequency
Response |
44Hz
- 18kHz |
| Dispersion | 60° x 40° |
|
LOW FREQUENCY WOOFER |
|
| Sensitivity (1W/1m) | 100dB SPL |
|
AES
Power Rating |
800
Watts |
| Program Power | 1,600 Watts |
|
Voice Coil Diameter |
4"
/ 100mm |
| Former | Glass Fiber |
| Winding Material | Aluminum |
| Winding Depth | 1" / 25.1mm |
| Magnetic Gap Height | .4" / 10.2mm |
| Magnet | Neodymium |
| Flux Density | 1.5 T |
| Cone Material | Front & Back Waterproof Paper |
| Demodulation Ring | Aluminum |
| Spider | Dual |
|
MID FREQUENCY DRIVER |
|
|
Sensitivity (1W/1m) |
110dB SPL |
| AES Power Rating | 110 Watts |
| Program Power | 220 Watts |
| Voice Coil Diameter | 4" / 100mm |
| MF Frequency Range | 500Hz - 5.5kHz |
| MF Recommended Crossover Frequency | 600Hz |
| Diaphragm Material | HT Polymer |
| Winding Material | Aluminum |
| Inductance | .21mH |
| Magnet | Neodymium |
| Flux Density | 1.9 T |
|
HIGH FREQUENCY DRIVER |
|
|
Sensitivity (1W/1m) |
110dB SPL |
| AES Power Rating | 80 Watts |
| Program Power | 160 Watts |
| Voice Coil Diameter | 2.5" / 65mm |
| HF Frequency Range | 3.5kHz - 18kHz |
| HF Recommended Crossover Frequency | 4kHz |
| Diaphragm Material | HT Polymer |
| Winding Material | Aluminum |
| Inductance | .1mH |
| Magnet | Neodymium |
| Flux Density | 2.14 T |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
18.11" / 460mm |
| Bolt Circle Diameter | 17.32" / 440mm |
| Baffle Cutout Diameter | 16.65" / 423mm |
| Depth | 11.77" / 299mm |
| Flange & Gasket Thickness | .63" / 16mm |
| Net Weight | 26.57 lbs./ 12.05 kg. |
| Shipping Weight | 30.75 lbs./ 13.95 kg. |
|
THIELE-SMALL
PARAMETERS |
|
|
Resonant Frequency (fs) |
44 Hz |
|
Impedance
(Re) |
5.4 ohms |
| Electrical Factor(Qes) | .34 |
| Mechanical Q (Qms) | 6.3 |
| Total Q (Qts) | .32 |
| Compliance Equiv. Vol. (Vas) | 173 Liters/6.11cu. ft. |
| Voice Coil Overhang (Xmax) | 10mm |
| Reference Efficiency | 2.5% |
| Surface Area of Cone (Sd)m2 | 0.1210m2 |
| Diaphragm Mass (Mms) | 158.5 grams |
| BL Factor | 26.3 T-M |
| Coil Inductance (Le) | 1.16mH |
|

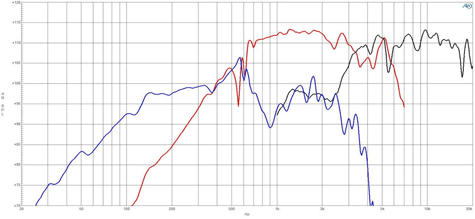

FREQUENCY RESPONSE |
|
|
|
|
|

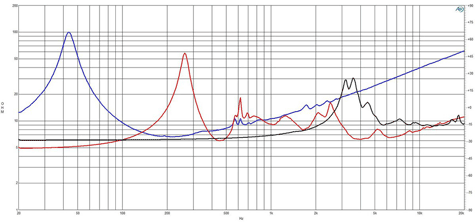

IMPEDNACE CURVE |
|
|
|
|
|

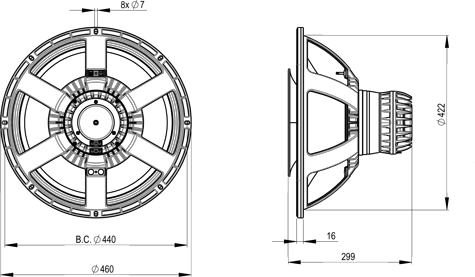

DRAWING |
|
|
|
|
|

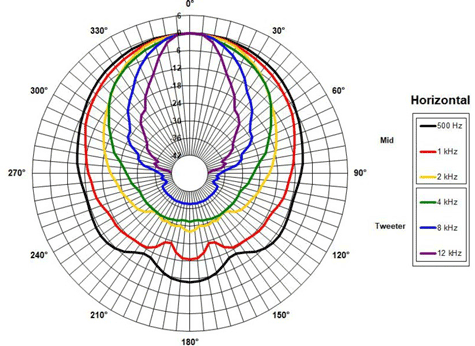

HORIZONTAL POLAR RESPONSE |
|
|
|
|
|

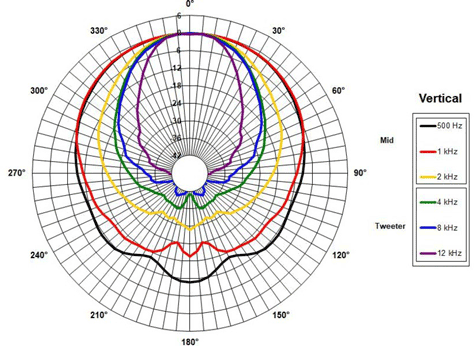

VERTICAL POLAR RESPONSE |
|
|
|
|
|

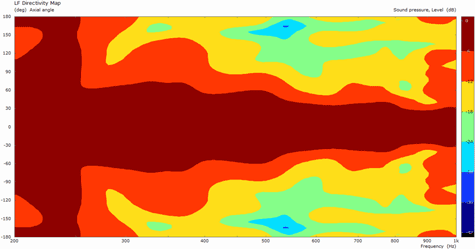

LOW FREQUENCY VERTICAL DIRECTIVITY |
|
|
|
|
|

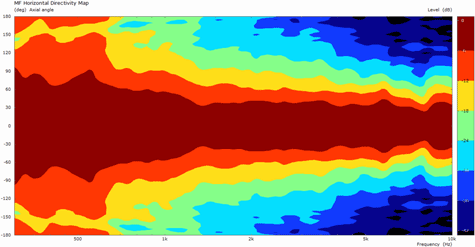

MID FREQUENCY HORIZONTAL DIRECTIVITY |
|
|
|
|
|

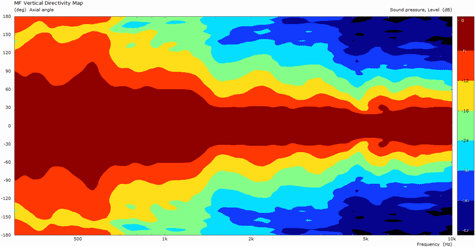

MID FREQUENCY VERTICAL DIRECTIVITY |
|
|
|
|

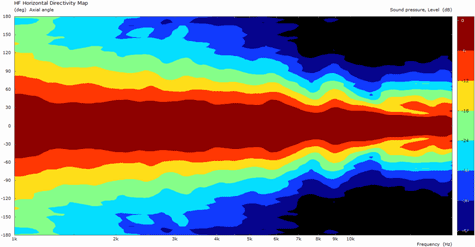

| HIGH FREQUENCY HORIZONTAL DIRECTIVITY | |
 |
|

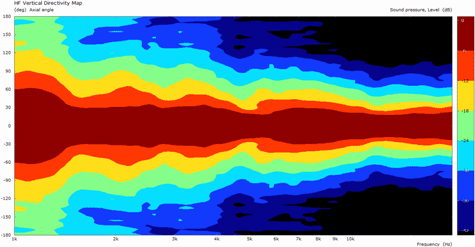

| HIGH FREQUENCY VERTICAL DIRECTIVITY | |
 |
|
