B & C PROFESSIONAL COMPONENTS |
|
18NBX100 - 18" NEODYMIUM PRO WOOFER |
|
THE B&C 18NBX100 IS A LIGHTWEIGHT NEODYMIUM 18" WOOFER W/ 2,400 WATTS PROGRAM POWER HANDLING! |
|
|
|
18NBX100 |
|
4 Ohm Version
Item Price: $385.98 |
|
|
8 Ohm Version
Item Price: $385.98 |
|
|
SPEAKER
MODEL |
18NBX100 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
18" |
|
Impedance |
4 or 8
ohms |
|
RMS
Power Rating |
1,200
Watts |
| Program Power | 2,400 Watts |
|
Frequency
Response |
35Hz
- 1.5kHz |
|
Sensitivity
(1W/1m) |
96.5dB |
|
Voice
Coil Diameter |
4"
/ 100mm |
| Winding Material | Copper |
| Former Material | Fiberglass |
| Winding Depth | 1.0" / 25mm |
| Magnetic Gap Depth | .43" / 11mm |
| Flux Density | 1.1T |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
18" / 460mm |
| Bolt Circle Diameter | 17.3" / 440mm |
| Baffle Cutout Diameter | 16.6" / 422mm |
| Depth | 8.19" / 208mm |
| Flange & Gasket Thickness | .55" / 14mm |
| No. Of Mounting Holes | 8 |
| Net Weight | 20.5 lbs./ 9.3 kg. |
| Shipping Weight | 23.81 lbs./ 10.8 kg. |
|
THIELE-SMALL
PARAMETERS |
|
|
Resonant Frequency (fs) |
35 Hz |
|
Impedance
(Re) |
5.2 ohms |
| Electrical Factor(Qes) | .4 |
| Mechanical Q (Qms) | 5.6 |
| Total Q (Qts) | .38 |
| Compliance Equiv. Vol. (Vas) | 198 Liters/7.0cu. ft. |
| Voice Coil Overhang (Xmax) | 10.0mm |
| Reference Efficiency | 2% |
| Diaphragm Mass (Mms) | 217g |
| BL Factor | 24.8 T-M |
| Coil Inductance (Le) | 1.85mH |

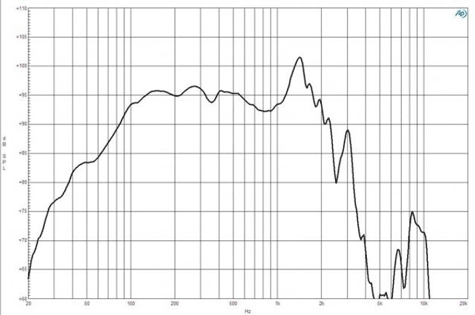

| FREQUENCY RESPONSE | |
 |
|

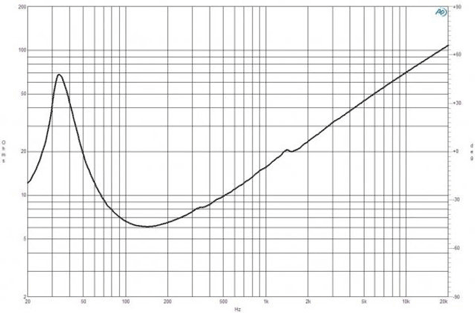

| IMPEDANCE CURVE | |
 |
|

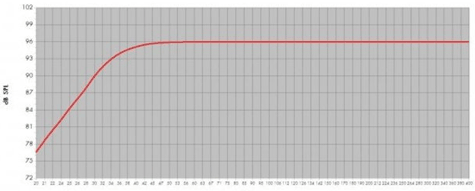

| FREQUENCY RESPONSE IN BASS REFLEX CABINET | |
 |
CABINET SPECS |
|
|
