LIGHTWEIGHT NEODYMIUM 18" SUBWOOFER THAT HAS A 12.5MM XMAX & HANDLES A MASSIVE 3,000 WATTS PROGRAM! |
|
|
|
18SW100 |
|
Item Price: $528.88 |
|
|
B & C PROFESSIONAL COMPONENTS |
|

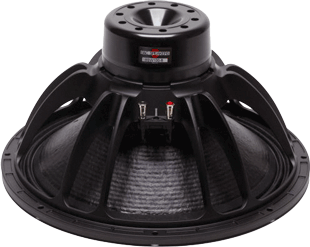

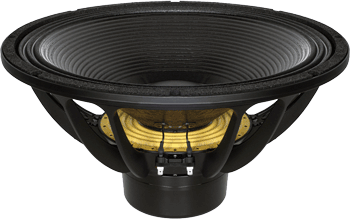

18SW100 - 18" HIGH POWER NEODYMIUM SUBWOOFER |
|
LIGHTWEIGHT NEODYMIUM 18" SUBWOOFER THAT HAS A 12.5MM XMAX & HANDLES A MASSIVE 3,000 WATTS PROGRAM! |
|
|
|
18SW100 |
|
Item Price: $528.88 |
|
|
SPEAKER
MODEL |
18SW100 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
18" |
|
Impedance |
8
ohms |
|
RMS
Power Rating |
1,500
Watts |
| Program Power | 3,000 Watts |
|
Frequency
Response |
35Hz
- 1.0kHz |
|
Sensitivity
(1W/1m) |
97dB |
|
Voice
Coil Diameter |
4"
/ 100mm |
| Winding Material | Copper |
| Former Material | Fiberglass |
| Winding Depth | 1.26" / 33mm |
| Magnetic Gap Depth | .55" / 14mm |
| Flux Density | 1.15T |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
18" / 460mm |
| Bolt Circle Diameter | 17.44" / 443mm |
| Baffle Cutout Diameter | 16.6" / 422mm |
| Depth | 9.4" / 239mm |
| Flange & Gasket Thickness | .625" / 16mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.3 ft3 / 10.5 Liters |
| Net Weight | 23.15 lbs./ 10.5 kg. |
| Shipping Weight | 27.12 lbs./ 12.3 kg. |
|
MATERIALS |
|
| Basket | Die Cast Aluminum |
| Cone | Treated Paper |
| Surround Shape | Triple Roll |
| Cone Shape | Radial |
| Voice Coil | Copper |
| Pole Design | T-Pole |
| Spider | Double Silicone |
| Magnet | Neodymium |
|
THIELE-SMALL PARAMETERS |
|
|
Resonant Frequency (fs) |
35 Hz |
|
Impedance
(Re) |
5.3 ohms |
| Electrical Factor(Qes) | .4 |
| Mechanical Q (Qms) | 5.9 |
| Total Q (Qts) | .38 |
| Compliance Equiv. Vol. (Vas) | 180 Liters/6.3cu. ft. |
| Voice Coil Overhang (Xmax) | 12.5mm |
| Reference Efficiency | 1.9% |
| Diaphragm Mass (Mms) | 234 grams |
| BL Factor | 26.1 T-M |
| Surface Area of Cone (Sd)m2 | 0.1210m2 |
| Coil Inductance (Le) | 2.2mH |
| EBP (Fs/Qes) | 88 |
| BASS REFLEX - CABINET VOLUME AND PORTING | |
 |
|

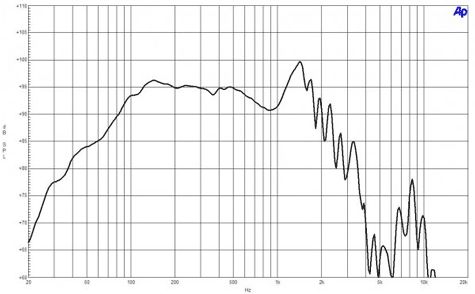

| FREQUENCY RESPONSE | |
 |
|

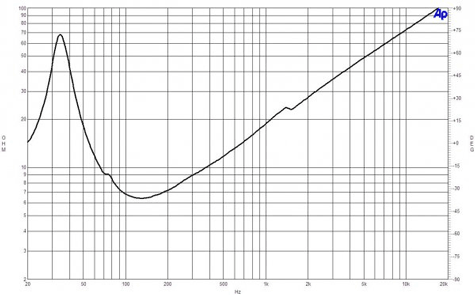

| IMPEDANCE | |
 |
|
