THE B&C 3.5NDF26 WORKS WELL IN COMPACT FULLRANGE SPEAKERS SYSTEMS THAT REQUIRE NO CROSSOVER |
|
|
|
B&C 3.5NDF26 |
|
16 ohms
Item Price: $36.95 |
|
|
B & C PROFESSIONAL COMPONENTS |
|
3.5NDF26 - 3.5" LIGHTWEIGHT NEO SPEAKER |
|
THE B&C 3.5NDF26 WORKS WELL IN COMPACT FULLRANGE SPEAKERS SYSTEMS THAT REQUIRE NO CROSSOVER |
|
|
|
B&C 3.5NDF26 |
|
16 ohms
Item Price: $36.95 |
|
|
SPEAKER
MODEL |
3.5NDF26 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
3.5" |
|
Impedance |
16 ohms |
|
RMS
Power Rating |
30
Watts |
| Program Power | 60 Watts |
|
Frequency
Response |
100Hz
- 20kHz |
|
Sensitivity
(1W/1m) |
88dB |
|
Voice
Coil Diameter |
1.02" / 26mm |
| Winding Material | Aluminum |
| Former Material | Kapton |
| Winding Depth | .31" / 8.0mm |
| Magnetic Gap Depth | .13" / 3mm |
| Flux Density | 1.3T |
|
MATERIALS |
|
|
Cone |
Treated Paper |
| Surround Shape |
|
| Cone Shape | Exponential |
| Magnet | Neodymium |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
4.21" / 107mm |
| Bolt Circle Diameter | 3.78" / 96mm |
| Baffle Cutout Diameter | 3.17" / 80.5mm |
| Depth | 1.97" / 50mm |
| Flange & Gasket Thickness | .13" / 3mm |
| No. Of Mounting Holes | 4 |
| Net Weight | .4 lbs./ .18 kg. |
|
THIELE-SMALL PARAMETERS |
|
|
Resonant Frequency (fs) |
98Hz |
|
Impedance
(Re) |
12.0 ohms |
| Electrical Factor(Qes) | .58 |
| Mechanical Q (Qms) | 8.8 |
| Total Q (Qts) | .55 |
| Compliance Equiv. Vol. (Vas) | 1.9 Liters/.07cu. ft. |
| Voice Coil Overhang (Xmax) | 3.2mm |
| Reference Efficiency | 0.3% |
| Diaphragm Mass (Mms) | 4.0 Grams |
| BL Factor | 5.1 T-M |
| Coil Inductance(Le) | 0.26mH |
| Surface Area of Cone (Sd)m2 | 0.0046m2 |

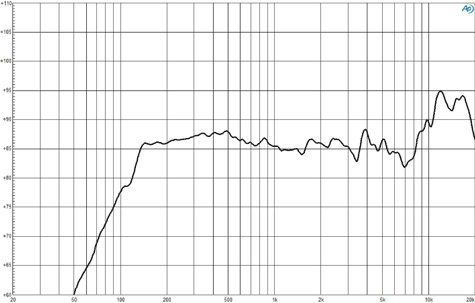

| FREQUENCY RESPONSE | |
|
|
|

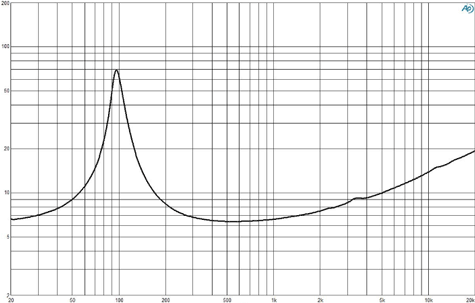

| IMPEDANCE CURVE | |
 |
|
