THE B&C 5NDL38 IS A NICE SOUNDING 5" LIGHTWEIGHT WOOFER THAT PACKS A PUNCH! |
|
|
|
B&C 5NDL38 |
|
Item Price: $126.11 |
|
|
B & C PROFESSIONAL COMPONENTS |
|
5NDL38 - 5" LIGHTWEIGHT NEO MID-BASS SPEAKER |
|
THE B&C 5NDL38 IS A NICE SOUNDING 5" LIGHTWEIGHT WOOFER THAT PACKS A PUNCH! |
|
|
|
B&C 5NDL38 |
|
Item Price: $126.11 |
|
|
SPEAKER
MODEL |
5NDL38 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
5" |
|
Impedance |
8
ohms |
|
RMS
Power Rating |
90
Watts |
| Program Power | 180 Watts |
|
Frequency
Response |
80Hz
- 7.0kHz |
|
Sensitivity
(1W/1m) |
90dB |
|
Voice
Coil Diameter |
1.5" / 38mm |
| Winding Material | Aluminum |
| Former Material | Kapton |
| Winding Depth | .37" / 9.5mm |
| Magnetic Gap Depth | .24" / 6mm |
| Flux Density | 1.15T |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
5.9" / 150mm |
| Bolt Circle Diameter | 5.6" / 142mm |
| Baffle Cutout Diameter | 4.8" / 122mm |
| Depth | 2.95" / 75mm |
| Flange & Gasket Thickness | .35" / 9mm |
| No. Of Mounting Holes | 4 |
| Net Weight | 1.9 lbs./ .85 kg. |
|
THIELE-SMALL PARAMETERS |
|
|
Resonant Frequency (fs) |
92Hz |
|
Impedance
(Re) |
5.5 ohms |
| Electrical Factor(Qes) | .5 |
| Mechanical Q (Qms) | 11 |
| Total Q (Qts) | .48 |
| Compliance Equiv. Vol. (Vas) | 3.3 Liters/.12cu. ft. |
| Voice Coil Overhang (Xmax) | 3.3mm |
| Reference Efficiency | 0.5% |
| BL Factor | 8.5 T-M |
| Coil Inductance(Le) | 0.35mH |
| Surface Area of Cone (Sd)m2 | 0.0095m2 |

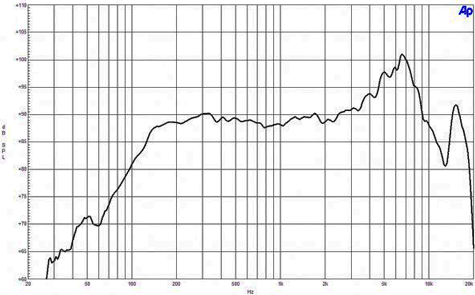

| FREQUENCY RESPONSE | |
|
|
|

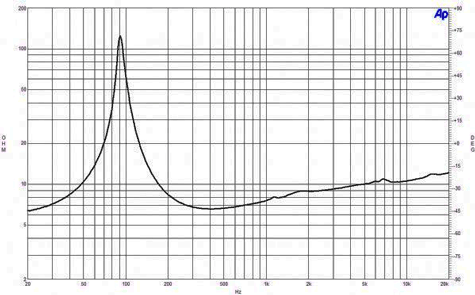

| IMPEDANCE CURVE | |
 |
|

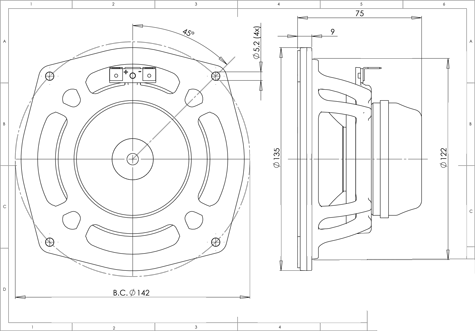

| MOUNTING DIMENSIONS | |
 |
|

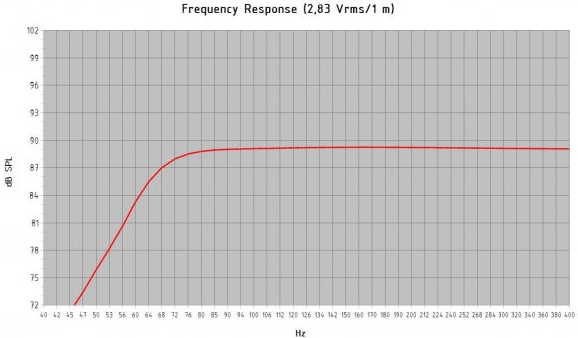

| FREQUENCY RESPONSE IN BASS REFLEX CABINET | |
|
|
CABINET SPECS |
|
|
