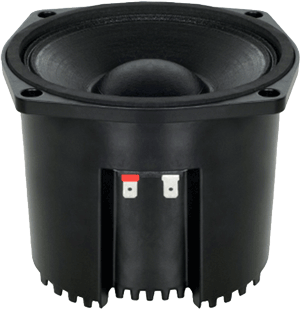

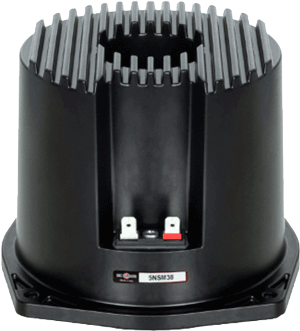

B&C 5NSM38 CLOSED BACK 5" MIDRANGE SPEAKER WORKS IN OPEN BAFFLE, FRONT LOADED & HORN LOADED MIDRANGE SYSTEMS!
5NSM38
Item Price: $158.67
|
B & C PROFESSIONAL COMPONENTS |
|
5NSM64 - 5" LIGHTWEIGHT CLOSED BACK MIDRANGE SPEAKER |
|
B&C 5NSM38 CLOSED BACK 5" MIDRANGE SPEAKER WORKS IN OPEN BAFFLE, FRONT LOADED & HORN LOADED MIDRANGE SYSTEMS! |
|
|
|
5NSM38 |
|
Item Price: $158.67 |
|
|
SPEAKER
MODEL |
5NSM38 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
5" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
110
Watts |
| Program Power | 220 Watts |
|
Frequency
Response |
300Hz
- 3.5kHz |
|
Sensitivity
(1W/1m) |
99dB |
|
Voice
Coil Diameter |
1.5"
/ 38mm |
| Winding Depth | .29" / 7mm |
| Magnetic Gap Depth | .24" / 6mm |
| Flux Density | 1.45T |
|
MATERIALS |
|
| Basket | Cast Aluminum |
| Surround Shape | Double Roll |
| Cone Shape | Radial |
| Cone Protection | Waterproof |
| Spider | Single |
| Pole Design | T-Pole |
| Former Material | Glass Fiber |
| Voice Coil | Aluminum |
| Magnet | Neodymium |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
6.18" / 157mm |
| Bolt Circle Diameter | 5.59" / 142mm |
| Baffle Cutout Diameter | 4.8" / 122mm |
| Depth | 4.25" / 108mm |
| Flange & Gasket Thickness | .35" / 9mm |
| No. Of Mounting Holes | 6 |
| Net Weight | 3.02 lbs./ 1.37 kg. |
| Shipping Weight | 4.01 lbs./ 1.82 kg. |
|
THIELE-SMALL PARAMETERS |
|
|
Resonant Frequency (fs) |
300 Hz |
|
Impedance
(Re) |
5.3 ohms |
| Electrical Factor(Qes) | .99 |
| Mechanical Q (Qms) | 4.1 |
| Total Q (Qts) | .79 |
| Compliance Equiv. Vol. (Vas) | .3 Liters/.01cu. ft. |
| Voice Coil Overhang (Xmax) | 2.2mm |
| Surface Area of Cone (Sd)m2 | 0.0095m2 |
| Diaphragm Mass(Mms) | 9 Grams |
| Reference Efficiency | 1.15% |
| BL Factor | 10.1 T-M |
| Coil Inductance (Le) | 0.15mH |

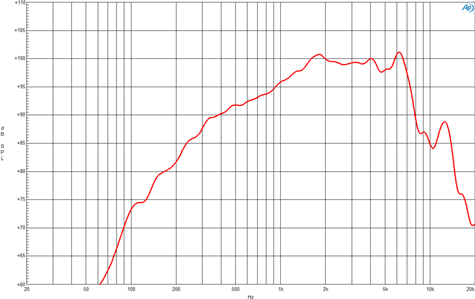

| FREQUENCY RESPONSE | |
 |
|

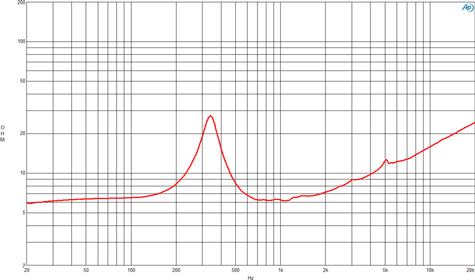

| IMPEDANCE CURVE | |
 |
|
