THE B&C 5CXN44 5" COAXIAL SPEAKER HAS AN OVERALL SMOOTH NATURAL SOUND! |
|
|
|
B&C 5CXN44 |
|
Item Price: $205.03 |
|
|
B & C PROFESSIONAL COMPONENTS |
|
5CXN44 - 5" COAXIAL SPEAKER |
|
THE B&C 5CXN44 5" COAXIAL SPEAKER HAS AN OVERALL SMOOTH NATURAL SOUND! |
|
|
|
B&C 5CXN44 |
|
Item Price: $205.03 |
|
|
SPEAKER
MODEL |
5CXN44 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
5" |
| Impedance |
8
ohms |
| Frequency Range |
70Hz
- 18kHz |
| Dispersion Angle | 80º |
|
LOW FREQUENCY SPECIFICATIONS |
|
|
RMS
Power Rating |
150
Watts |
| Program Power | 300 Watts |
|
Sensitivity
(1W/1m) |
86.5dB |
|
Voice
Coil Diameter |
1.7" / 44mm |
| Flux Density | .95 T |
| Magnetic Gap Depth | .24" / 6mm |
| Winding Depth | .55" / 14mm |
| Winding Material | Copper |
|
HIGH FREQUENCY SPECIFICATIONS |
|
|
RMS
Power Rating |
25 Watts |
| Program Power | 50 Watts |
|
Sensitivity
(1W/1m) |
101dB |
|
Voice
Coil Diameter |
1.4" / 36mm |
| Crossover Frequency | 2kHz |
| Winding Material | Aluminum |
| Diaphragm Material | HT Polymer |
|
MATERIALS |
|
| Basket | Cast Aluminum |
| Surround | Rubber |
| Surround Shape | Half Roll |
| Cone Shape | Exponential |
| Cone Protection | Waterproof |
| Spider | Single |
| Magnet | Neodymium |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
5.35" / 136mm |
| Bolt Circle Diameter | 5.6" / 142mm |
| Baffle Cutout Diameter | 4.8" / 122mm |
| Depth | 4.33" / 110mm |
| Flange & Gasket Thickness | .31" / 8mm |
| No. Of Mounting Holes | 4 |
| Net Weight | 4.1 lbs./ 1.85 kg. |
| 4.85 lbs./ 2.2 kg. | |
|
THIELE-SMALL PARAMETERS |
|
|
Resonant Frequency (fs) |
70Hz |
|
Impedance
(Re) |
4.7 ohms |
| Electrical Factor(Qes) | .47 |
| Mechanical Q (Qms) | 9.6 |
| Total Q (Qts) | .45 |
| Compliance Equiv. Vol. (Vas) | 4.3 Liters/.15cu. ft. |
| Voice Coil Overhang (Xmax) | 6.0mm |
| Reference Efficiency | 0.31% |
| BL Factor | 8.1 T-M |
| Diaphragm Mass (Mms) | 15 Grams |
| Coil Inductance (Le) | 0.37mH |
| Surface Area of Cone (Sd)m2 | 0.0095m2 |
| FREQUENCY RESPONSE | |
|
|
|

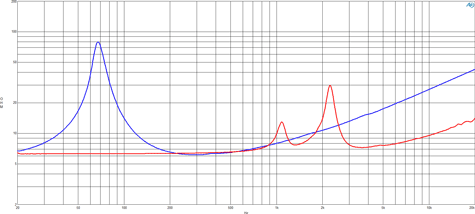

| IMPEDANCE CURVE | |
 |
|

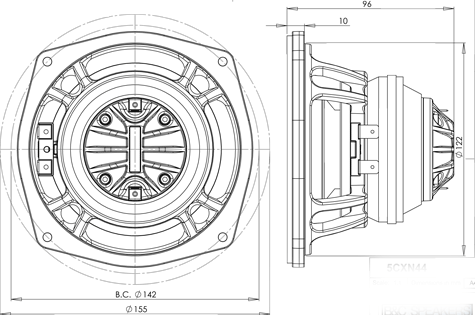

| MOUNTING DIMENSIONS | |
 |
|

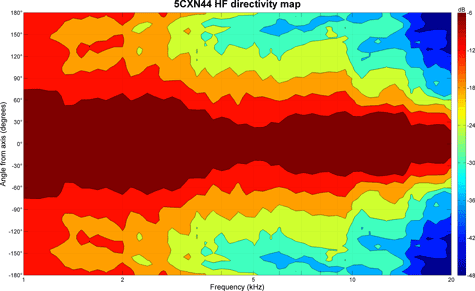

| HIGH FREQUENCY DIRECTIVITY | |
 |
|

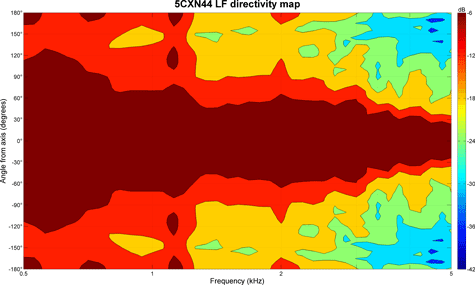

| LOW FREQUENCY DIRECTIVITY | |
 |
|

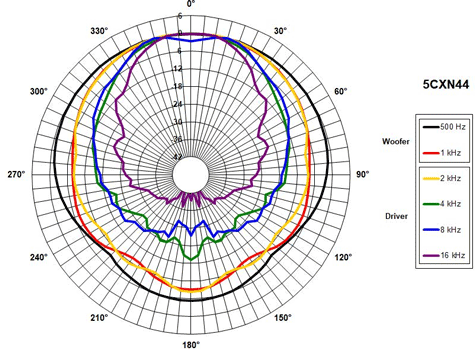

| POLAR RESPONSE | |
 |
|

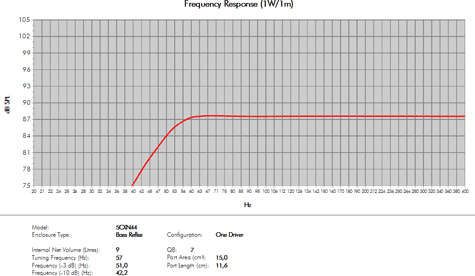

| PREDICTED FREQUENCY RESPONSE | |
|
|
|
