THE B&C 5FCX44 IS A NICE SOUNDING 5" COAXIAL SPEAKER THAT HAS TIGHT BASS & NATURAL SOUNDING MIDS & HIGHS! |
|
|
|
B&C 5FCX44 |
|
Item Price: $176.56 |
|
|
B & C PROFESSIONAL COMPONENTS |
|

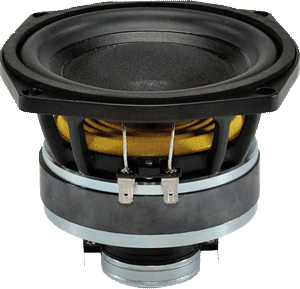

5FCX44 - 5" COAXIAL SPEAKER |
|
THE B&C 5FCX44 IS A NICE SOUNDING 5" COAXIAL SPEAKER THAT HAS TIGHT BASS & NATURAL SOUNDING MIDS & HIGHS! |
|
|
|
B&C 5FCX44 |
|
Item Price: $176.56 |
|
|
SPEAKER
MODEL |
5FCX44 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
5" |
| Impedance |
8
ohms |
| Frequency Range |
60Hz
- 18kHz |
| Dispersion Angle | 70º |
|
LOW FREQUENCY SPECIFICATIONS |
|
|
RMS
Power Rating |
100
Watts |
| Program Power | 200 Watts |
|
Sensitivity
(1W/1m) |
91dB |
|
Voice
Coil Diameter |
1.7" / 44mm |
| Winding Material | Copper |
|
HIGH FREQUENCY SPECIFICATIONS |
|
|
RMS
Power Rating |
10 Watts |
| Program Power | 20 Watts |
|
Sensitivity
(1W/1m) |
107.5dB |
|
Voice
Coil Diameter |
1.7" / 44mm |
| Crossover Frequency | 2.5kHz |
| Winding Material | Aluminum |
| Diaphragm Material | Polyester |
|
MATERIALS |
|
| Basket | Cast Aluminum |
| Surround | Rubber |
| Surround Shape | Half Roll |
| Cone Shape | Exponential |
| Cone Protection | Waterproof |
| Spider | Single |
| Magnet | Ferrite |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
5.35" / 136mm |
| Bolt Circle Diameter | 5.6" / 142mm |
| Baffle Cutout Diameter | 4.8" / 122mm |
| Depth | 4.33" / 110mm |
| Flange & Gasket Thickness | .31" / 8mm |
| No. Of Mounting Holes | 4 |
| Net Weight | 4.1 lbs./ 1.85 kg. |
| 4.85 lbs./ 2.2 kg. | |
|
THIELE-SMALL PARAMETERS |
|
|
Resonant Frequency (fs) |
61Hz |
|
Impedance
(Re) |
5.6 ohms |
| Electrical Factor(Qes) | .25 |
| Mechanical Q (Qms) | 7.8 |
| Total Q (Qts) | .25 |
| Compliance Equiv. Vol. (Vas) | 7.0 Liters/.25cu. ft. |
| Voice Coil Overhang (Xmax) | 3.0mm |
| Reference Efficiency | 0.6% |
| BL Factor | 10.5 T-M |
| Diaphragm Mass (Mms) | 12 Grams |
| Coil Inductance(Le) | 0.8mH |
| Surface Area of Cone (Sd)m2 | 0.0095m2 |

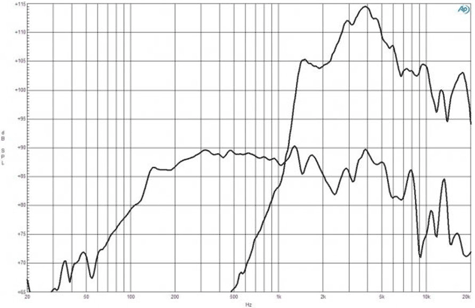

| FREQUENCY RESPONSE | |
|
|
|
| IMPEDANCE CURVE | |
 |
|

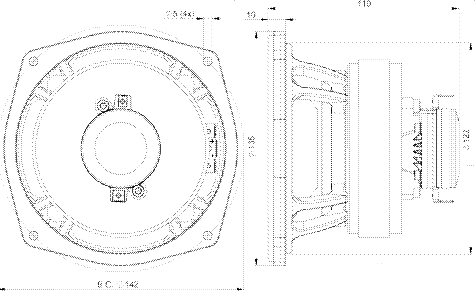

| MOUNTING DIMENSIONS | |
 |
|

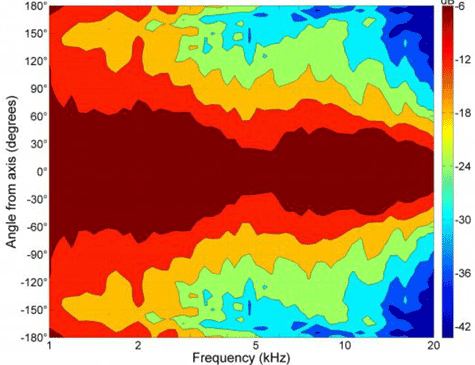

| HIGH FREQUENCY DIRECTIVITY | |
 |
|

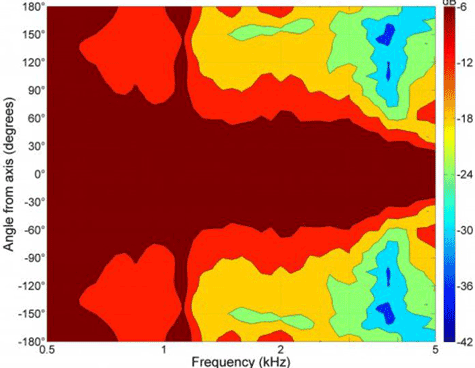

| LOW FREQUENCY DIRECTIVITY | |
|
|
|
