THE B&C 5FG44 IS A SOLID SOUNDING 5" SPEAKER THAT HAS NICE TIGHT BASS & NATUARL SOUNDING MIDS! |
|
|
|
B&C 5FG44 |
|
Item Price: $113.34 |
|
|
B & C PROFESSIONAL COMPONENTS |
|
5FG44 - 5" BASS/MID-BASS SPEAKER |
|
THE B&C 5FG44 IS A SOLID SOUNDING 5" SPEAKER THAT HAS NICE TIGHT BASS & NATUARL SOUNDING MIDS! |
|
|
|
B&C 5FG44 |
|
Item Price: $113.34 |
|
|
SPEAKER
MODEL |
5FG44 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
5" |
|
Impedance |
8
ohms |
|
RMS
Power Rating |
100
Watts |
| Program Power | 200 Watts |
|
Frequency
Response |
63Hz
- 6.0kHz |
|
Sensitivity
(1W/1m) |
92dB |
|
Voice
Coil Diameter |
1.7" / 44mm |
| Winding Material | Copper |
| Former Material | Kapton |
| Winding Depth | .35" / 9mm |
| Magnetic Gap Depth | .25" / 6mm |
| Flux Density | 1.1T |
|
MATERIALS |
|
| Basket | Cast Aluminum |
| Pole Design | T-Pole |
| Surround | Rubber |
| Surround Shape | Half Roll |
| Cone Shape | Exponential |
| Cone Protection | Waterproof |
| Spider | Single |
| Magnet | Ferrite |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
5.31" / 135mm |
| Bolt Circle Diameter | 5.6" / 142mm |
| Baffle Cutout Diameter | 4.8" / 122mm |
| Depth | 3.03" / 77mm |
| Flange & Gasket Thickness | .35" / 9mm |
| No. Of Mounting Holes | 4 |
| Net Weight | 3.53 lbs./ 1.6 kg. |
| Shipping Weight | 3.96 lbs./ 1.8 kg. |
|
THIELE-SMALL PARAMETERS |
|
|
Resonant Frequency (fs) |
63Hz |
|
Impedance
(Re) |
5.8 ohms |
| Electrical Factor(Qes) | .3 |
| Mechanical Q (Qms) | 10 |
| Total Q (Qts) | .27 |
| Compliance Equiv. Vol. (Vas) | 6.3 Liters/.22cu. ft. |
| Voice Coil Overhang (Xmax) | 3.0mm |
| Reference Efficiency | 0.55% |
| BL Factor | 10.0 T-M |
| Coil Inductance(Le) | 0.8mH |
| Surface Area of Cone (Sd)m2 | 0.0095m2 |

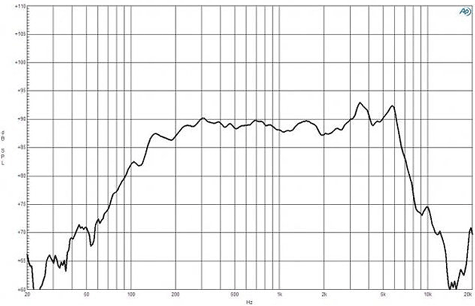

| FREQUENCY RESPONSE | |
|
|
|

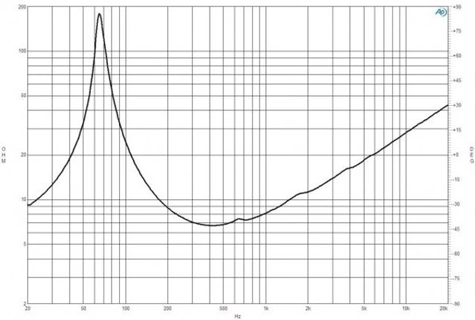

| IMPEDANCE CURVE | |
 |
|
| MOUNTING DIMENSIONS | |
 |
|

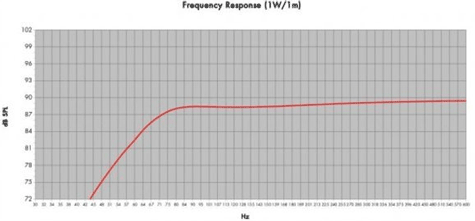

| FREQUENCY RESPONSE IN BASS REFLEX CABINET | |
|
|
CABINET SPECS |
|
|
