SOUNDS REALLY GOOD WHEN YOU NEED POWERFUL CLEAN MIDRANGE! |
|
|
|

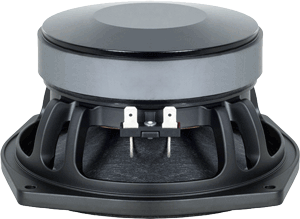

B&C 6MD38 |
|
Item Price: $110.04 |
|
|
B & C PROFESSIONAL COMPONENTS |
|
6MD38 - 6.5" HIGH EFFICIENCY MIDRANGE |
|
SOUNDS REALLY GOOD WHEN YOU NEED POWERFUL CLEAN MIDRANGE! |
|
|
|
B&C 6MD38 |
|
Item Price: $110.04 |
|
|
SPEAKER
MODEL |
6MD38 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
6.5" |
|
Impedance |
8
ohms |
|
RMS
Power Rating |
120
Watts |
| Program Power | 240 Watts |
|
Frequency
Response |
150Hz
- 6.0kHz |
|
Sensitivity
(1W/1m) |
96dB |
|
Voice
Coil Diameter |
1.5" / 38mm |
| Winding Material | Aluminum |
| Former Material | Fiber Glass |
| Winding Depth | .35" / 9mm |
| Magnetic Gap Depth | .25" / 6mm |
| Flux Density | 1.4T |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
7.4" / 187mm |
| Bolt Circle Diameter | 6.7" / 172mm |
| Baffle Cutout Diameter | 5.7" / 145mm |
| Depth | 3.2" / 82mm |
| Flange & Gasket Thickness | .35" / 9mm |
| No. Of Mounting Holes | 4 |
| Net Weight | 4.8 lbs./ 2.2 kg. |
|
THIELE-SMALL PARAMETERS |
|
|
Resonant Frequency (fs) |
130 Hz |
|
Impedance
(Re) |
5.7 ohms |
| Electrical Factor(Qes) | .49 |
| Mechanical Q (Qms) | 3.7 |
| Total Q (Qts) | .44 |
| Compliance Equiv. Vol. (Vas) | 3 Liters/.1cu. ft. |
| Voice Coil Overhang (Xmax) | 2.0mm |
| Reference Efficiency | 1.4% |
| BL Factor | 10.5 T-M |
| Coil Inductance(Le) | 0.25mH |

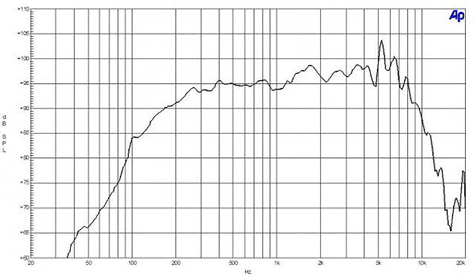

| FREQUENCY RESPONSE | |
 |
|

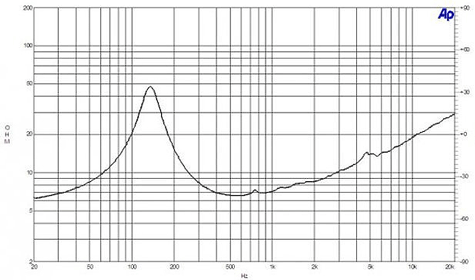

| IMPEDANCE CURVE | |
 |
|
