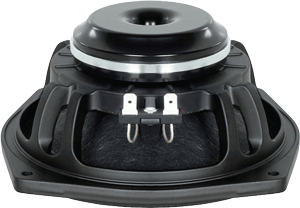

THE B&C 6MDN44 IS A LIGHTWEIGHT 6.5" MIDRANGE THAT HAS A CLEAN CRISP SOUND! |
|
|
|
B&C 6MDN44 |
|
Item Price: $130.56 |
|
|
B & C PROFESSIONAL COMPONENTS |
|
6MDN44 - 6.5" LIGHTWEIGHT MID SPEAKER |
|
THE B&C 6MDN44 IS A LIGHTWEIGHT 6.5" MIDRANGE THAT HAS A CLEAN CRISP SOUND! |
|
|
|
B&C 6MDN44 |
|
Item Price: $130.56 |
|
|
SPEAKER
MODEL |
6MDN44 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
6.5" |
|
Impedance |
8
ohms |
|
RMS
Power Rating |
150
Watts |
| Program Power | 300 Watts |
|
Frequency
Response |
150Hz
- 6.0kHz |
|
Sensitivity
(1W/1m) |
96.5dB |
|
Voice
Coil Diameter |
1.7" / 44mm |
| Winding Material | Aluminum |
| Former Material | Glass Fiber |
| Winding Depth | .375" / 9.5mm |
| Magnetic Gap Depth | .25" / 6mm |
| Flux Density | 1.45T |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
7.4" / 187mm |
| Bolt Circle Diameter | 6.7" / 172mm |
| Baffle Cutout Diameter | 5.7" / 145mm |
| Depth | 2.9" / 73mm |
| Flange & Gasket Thickness | .4" / 11mm |
| No. Of Mounting Holes | 4 |
| Net Weight | 2.2 lbs./ 1.0 kg. |
|
THIELE-SMALL PARAMETERS |
|
|
Resonant Frequency (fs) |
140Hz |
|
Impedance
(Re) |
5.4 ohms |
| Electrical Factor(Qes) | .46 |
| Mechanical Q (Qms) | 2.8 |
| Total Q (Qts) | .4 |
| Compliance Equiv. Vol. (Vas) | 2.7 Liters/.09cu. ft. |
| Voice Coil Overhang (Xmax) | 2.5mm |
| Reference Efficiency | 1.4% |
| BL Factor | 11 T-M |
| Coil Inductance(Le) | 0.47mH |
| Surface Area of Cone (Sd)m2 | 0.0132m2 |

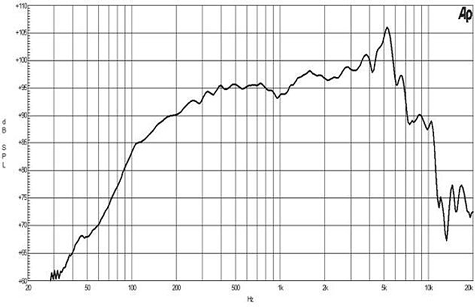

| FREQUENCY RESPONSE | |
 |
|

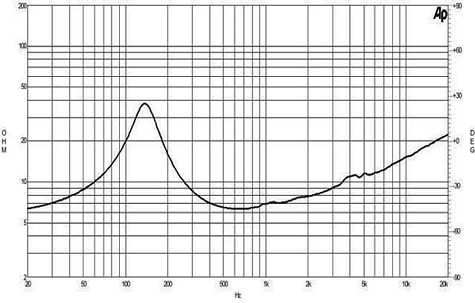

| IMPEDANCE CURVE | |
 |
|
