A NICE SOUNDING 6.5" LIGHTWEIGHT WOOFER THAT PACKS A PUNCH! |
|
|
|
B&C 6NDL38 |
|
Item Price: $145.65 |
|
|
B & C PROFESSIONAL COMPONENTS |
|

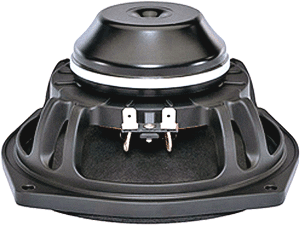

6NDL38 - 6.5" LIGHTWEIGHT NEO SPEAKER |
|
A NICE SOUNDING 6.5" LIGHTWEIGHT WOOFER THAT PACKS A PUNCH! |
|
|
|
B&C 6NDL38 |
|
Item Price: $145.65 |
|
|
SPEAKER
MODEL |
6NDL38 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
6.5" |
|
Impedance |
8
ohms |
|
RMS
Power Rating |
150
Watts |
| Program Power | 300 Watts |
|
Frequency
Response |
70Hz
- 6.0kHz |
|
Sensitivity
(1W/1m) |
92dB |
|
Voice
Coil Diameter |
1.5" / 38mm |
| Winding Material | Aluminum |
| Former Material | Kapton |
| Winding Depth | .5" / 12mm |
| Magnetic Gap Depth | .25" / 6mm |
| Flux Density | 1.15T |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
7.4" / 187mm |
| Bolt Circle Diameter | 6.7" / 172mm |
| Baffle Cutout Diameter | 5.7" / 145mm |
| Depth | 3.3" / 85mm |
| Flange & Gasket Thickness | .4" / 11mm |
| No. Of Mounting Holes | 4 |
| Net Weight | 2.6 lbs./ 1.2 kg. |
|
THIELE-SMALL PARAMETERS |
|
|
Resonant Frequency (fs) |
72Hz |
|
Impedance
(Re) |
5.2 ohms |
| Electrical Factor(Qes) | .44 |
| Mechanical Q (Qms) | 11.5 |
| Total Q (Qts) | .42 |
| Compliance Equiv. Vol. (Vas) | 7 Liters/.25cu. ft. |
| Voice Coil Overhang (Xmax) | 6.0mm |
| Reference Efficiency | 0.6% |
| BL Factor | 9.5 T-M |
| Coil Inductance(Le) | 0.6mH |
| Surface Area of Cone (Sd)m2 | 0.0132m2 |

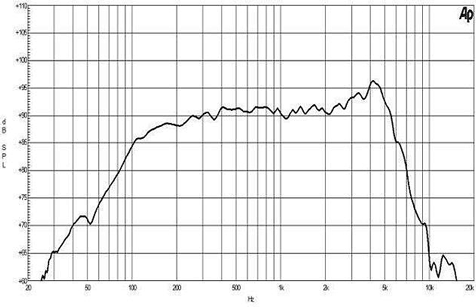

| FREQUENCY RESPONSE | |
 |
|

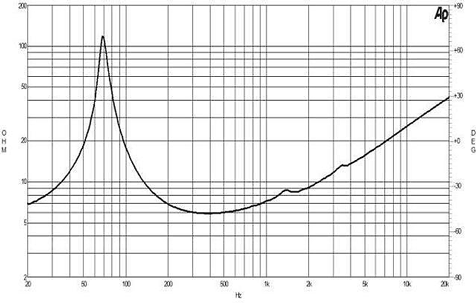

| IMPEDANCE CURVE | |
 |
|
