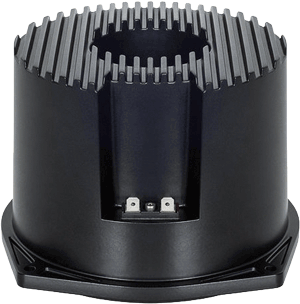

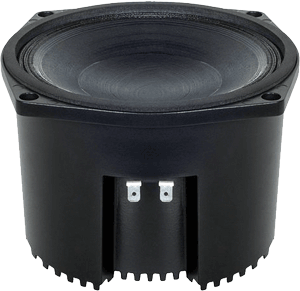

B&C 6NSM51 CLOSED BACK 6.5" MIDRANGE SPEAKER WORKS IN OPEN BAFFLE, FRONT LOADED & HORN LOADED MIDRANGE SYSTEMS!
6NSM51
Item Price: $218.06
|
B & C PROFESSIONAL COMPONENTS |
|
6NSM51 - 6.5" LIGHTWEIGHT CLOSED BACK MIDRANGE SPEAKER |
|
B&C 6NSM51 CLOSED BACK 6.5" MIDRANGE SPEAKER WORKS IN OPEN BAFFLE, FRONT LOADED & HORN LOADED MIDRANGE SYSTEMS! |
|
|
|
6NSM51 |
|
Item Price: $218.06 |
|
|
SPEAKER
MODEL |
6NSM51 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
6.5" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
250
Watts |
| Program Power | 500 Watts |
|
Frequency
Response |
300Hz
- 6.0kHz |
|
Sensitivity
(1W/1m) |
100dB |
|
Voice
Coil Diameter |
2"
/ 51mm |
| Winding Depth | .33" / 8mm |
| Magnetic Gap Depth | .24" / 6mm |
| Flux Density | 1.6T |
|
MATERIALS |
|
| Basket | Cast Aluminum |
| Surround Shape | Triple Roll |
| Cone Shape | Radial |
| Cone Protection | Waterproof |
| Spider | Single |
| Pole Design | T-Pole |
| Former Material | Glass Fiber |
| Voice Coil | Aluminum |
| Magnet | Neodymium |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
7.36" / 187mm |
| Bolt Circle Diameter | 6.77" / 172mm |
| Baffle Cutout Diameter | 5.94" / 151mm |
| Depth | 4.45" / 113mm |
| Flange & Gasket Thickness | .43" / 11mm |
| No. Of Mounting Holes | 4 |
| Net Weight | 4.96 lbs./ 2.25 kg. |
| Shipping Weight | 5.46 lbs./ 2.48 kg. |
|
THIELE-SMALL PARAMETERS |
|
|
Resonant Frequency (fs) |
280 Hz |
|
Impedance
(Re) |
5.4 ohms |
| Electrical Factor(Qes) | .68 |
| Mechanical Q (Qms) | 5.4 |
| Total Q (Qts) | .6 |
| Compliance Equiv. Vol. (Vas) | .7 Liters/.02cu. ft. |
| Voice Coil Overhang (Xmax) | 2.8mm |
| Surface Area of Cone (Sd)m2 | 0.0143m2 |
| Diaphragm Mass(Mms) | 13.5 Grams |
| Reference Efficiency | 2.2% |
| BL Factor | 13.9 T-M |
| Coil Inductance (Le) | 0.15mH |

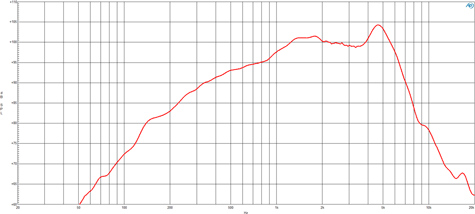

| FREQUENCY RESPONSE | |
 |
|

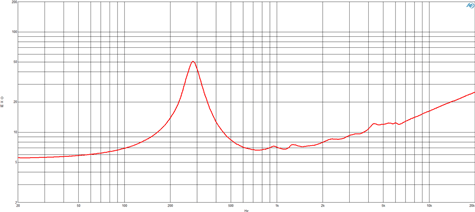

| IMPEDANCE CURVE | |
 |
|

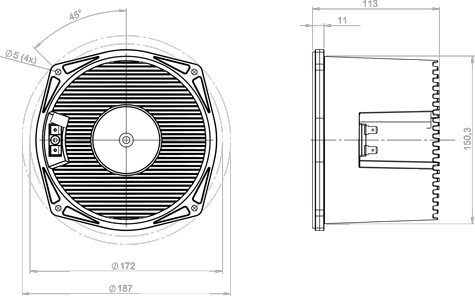

| MOUNTING DIMENSIONS | |
 |
|
