THE B&C 6CXN36 LIGHTWEIGHT NEODYMIUM 6.5" COAXIAL SPEAKER HAS A TIGHT CLEAN SOUND & POLYESTER HF DIAPHRAGM! |
|
|
|
B&C 6CXN36 |
|
Item Price: $156.06 |
|
|
B & C PROFESSIONAL COMPONENTS |
|
6CXN36 - 6.5" NEODYMIUM COAXIAL SPEAKER |
|
THE B&C 6CXN36 LIGHTWEIGHT NEODYMIUM 6.5" COAXIAL SPEAKER HAS A TIGHT CLEAN SOUND & POLYESTER HF DIAPHRAGM! |
|
|
|
B&C 6CXN36 |
|
Item Price: $156.06 |
|
|
SPEAKER
MODEL |
6CXN36 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
6.5" |
| Impedance |
8
ohms |
| Frequency Range |
90Hz
- 18kHz |
| Dispersion Angle | 70º |
|
LOW FREQUENCY SPECIFICATIONS |
|
|
RMS
Power Rating |
100
Watts |
| Program Power | 200 Watts |
|
Sensitivity
(1W/1m) |
90dB |
|
Voice
Coil Diameter |
1.3" /
34mm |
| Flux Density | .74 T |
| Magnetic Gap Depth |
.24" / 6mm |
| Winding Depth |
.43" / 11mm |
| Winding Material | Copper |
|
HIGH FREQUENCY SPECIFICATIONS |
|
|
RMS
Power Rating |
25 Watts |
| Program Power | 50 Watts |
|
Sensitivity
(1W/1m) |
100dB |
|
Voice
Coil Diameter |
1.4" / 36mm |
| Crossover Frequency | 2.0kHz |
| Winding Material | Aluminum |
| Diaphragm Material | HT Polymer |
| High Frequency Magnet | Neodymium |
|
LOW FREQUENCY MATERIALS |
|
| Basket | Steel |
| Surround | Treated Cloth |
| Surround Shape | 2 Roll |
| Cone Shape | Exponential |
| Cone Protection | Waterproof |
| Spider | Single |
| Former | Glass Fiber |
| Demodulation Ring | Aluminum |
| Speaker Magnet | Neodymium |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
7.09" / 180mm |
| Bolt Circle Diameter | 6.5" / 165mm |
| Baffle Cutout Diameter | 5.75" / 146mm |
| Depth | 3.58" / 91mm |
| Flange & Gasket Thickness | .25" / 6mm |
| No. Of Mounting Holes | 4 |
| Net Weight | 1.54 lbs./ .7 kg. |
| Shipping Weight | 2.54 lbs./ 1.15 kg. |
|
THIELE-SMALL PARAMETERS |
|
|
Resonant Frequency (fs) |
90Hz |
|
Impedance
(Re) |
5 ohms |
| Electrical Factor(Qes) | 1.17 |
| Mechanical Q (Qms) | 5 |
| Total Q (Qts) | .95 |
| Compliance Equiv. Vol. (Vas) | 7.5 Liters/.26cu. ft. |
| Voice Coil Overhang (Xmax) | 5.0mm |
| Reference Efficiency | 0.45% |
| BL Factor | 5.34 T-M |
| Diaphragm Mass (Mms) | 10.2 Grams |
| Coil Inductance (Le) | .94mH |
| Surface Area of Cone (Sd)m2 | 0.0132m2 |

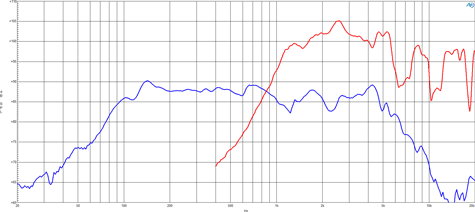

| FREQUENCY RESPONSE | |
|
|
|

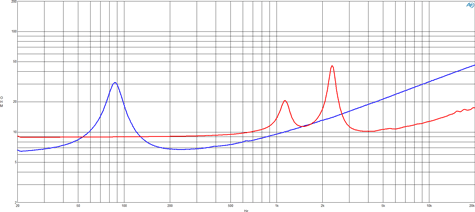

| IMPEDANCE CURVE | |
 |
|

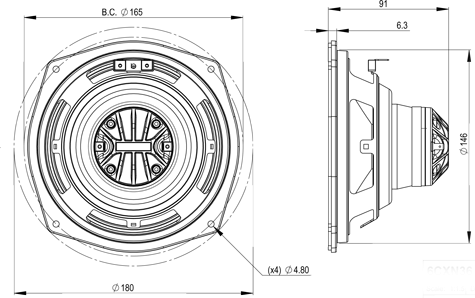

| DRAWING | |
 |
|

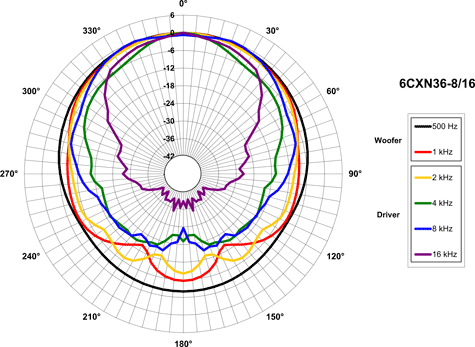

| POLAR PATTERN | |
 |
|

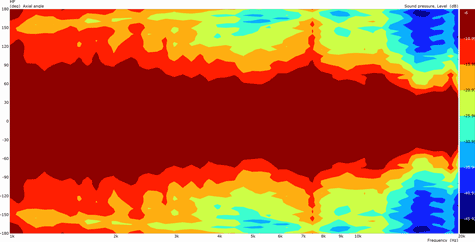

| HIGH FREQUENCY DIRECTIVITY | |
 |
|
