THE B&C 6FHX51 6.5" COAXIAL SPEAKER HAS A TIGHT CLEAN SOUND & POLYESTER HF DIAPHRAGM! |
|
|
|
B&C 6FHX51 |
|
Item Price: $177.38 |
|
|
B & C PROFESSIONAL COMPONENTS |
|

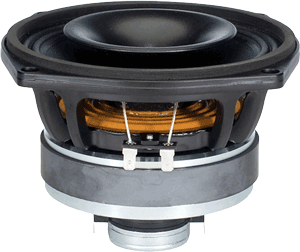

6FHX51 - 6.5" COAXIAL SPEAKER |
|
THE B&C 6FHX51 6.5" COAXIAL SPEAKER HAS A TIGHT CLEAN SOUND & POLYESTER HF DIAPHRAGM! |
|
|
|
B&C 6FHX51 |
|
Item Price: $177.38 |
|
|
SPEAKER
MODEL |
6FHX51 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
6.5" |
| Impedance |
8
ohms |
| Frequency Range |
85Hz
- 18kHz |
| Dispersion Angle | 70º |
|
LOW FREQUENCY SPECIFICATIONS |
|
|
RMS
Power Rating |
150
Watts |
| Program Power | 300 Watts |
|
Sensitivity
(1W/1m) |
93dB |
|
Voice
Coil Diameter |
2" / 51mm |
| Winding Material | Copper |
|
HIGH FREQUENCY SPECIFICATIONS |
|
|
RMS
Power Rating |
10 Watts |
| Program Power | 20 Watts |
|
Sensitivity
(1W/1m) |
108.5dB |
|
Voice
Coil Diameter |
1" / 25mm |
| Crossover Frequency | 2.5kHz |
| Winding Material | Aluminum |
| Diaphragm Material | Polyester |
| High Frequency Magnet | Neodymium |
|
LOW FREQUENCY MATERIALS |
|
| Basket | Cast Aluminum |
| Surround | Treated Cloth |
| Surround Shape | Two Roll |
| Cone Shape | Exponential |
| Spider | Single |
| Speaker Magnet | Ferrite |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
7.4" / 187mm |
| Bolt Circle Diameter | 6.7" / 172mm |
| Baffle Cutout Diameter | 5.75" / 146mm |
| Depth | 4.8" / 122mm |
| Flange & Gasket Thickness | .47" / 12mm |
| No. Of Mounting Holes | 4 |
| Net Weight | 5.9 lbs./ 2.7 kg. |
| 6.72 lbs./ 3.05 kg. | |
|
THIELE-SMALL PARAMETERS |
|
|
Resonant Frequency (fs) |
85Hz |
|
Impedance
(Re) |
5.5 ohms |
| Electrical Factor(Qes) | .4 |
| Mechanical Q (Qms) | 7.8 |
| Total Q (Qts) | .37 |
| Compliance Equiv. Vol. (Vas) | 5.0 Liters/.18cu. ft. |
| Voice Coil Overhang (Xmax) | 5.0mm |
| Reference Efficiency | 0.83% |
| BL Factor | 11.3 T-M |
| Diaphragm Mass (Mms) | 16 Grams |
| Coil Inductance(Le) | 1.0mH |
| Surface Area of Cone (Sd)m2 | 0.0132m2 |

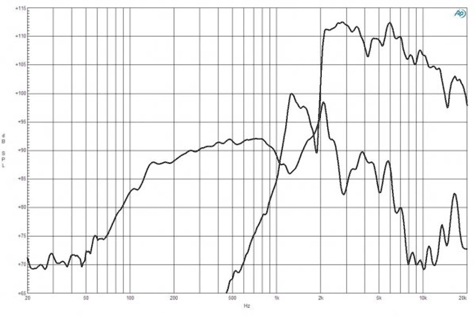

| FREQUENCY RESPONSE | |
|
|
|

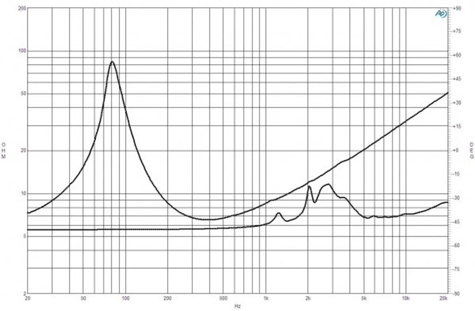

| IMPEDANCE CURVE | |
 |
|

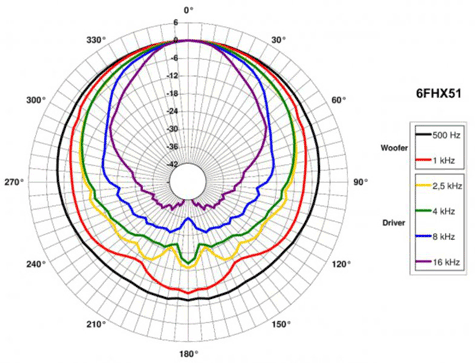

| POLAR PATTERN | |
 |
|
| HIGH FREQUENCY DIRECTIVITY | |
 |
|

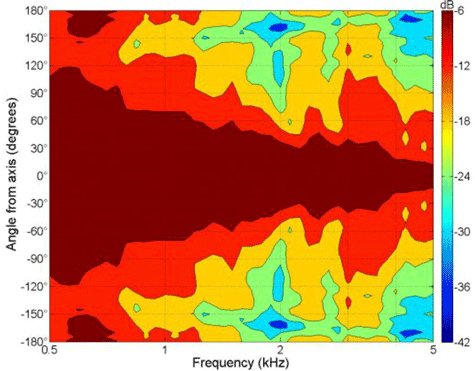

| LOW FREQUENCY DIRECTIVITY | |
|
|
|

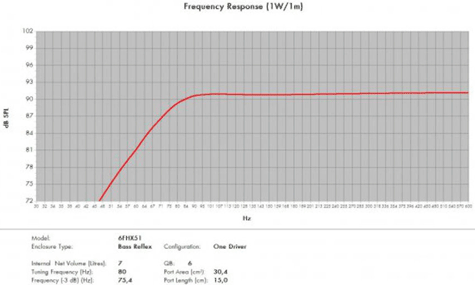

| PREDICTED RESPONSE | |
 |
|
