THE B&C 6MBX44 HAS LOUD & DETAILED MIDRANGE THAT IS FLAT THANKS TO ITS' ALUMINUM DEMODULATION RING! |
|
|
|
B&C 6MBX44 |
|
Item Price: $165.90 |
|
|
B & C PROFESSIONAL COMPONENTS |
|
6MBX44 - 6.5" LIGHTWEIGHT MIDRANGE SPEAKER |
|
THE B&C 6MBX44 HAS LOUD & DETAILED MIDRANGE THAT IS FLAT THANKS TO ITS' ALUMINUM DEMODULATION RING! |
|
|
|
B&C 6MBX44 |
|
Item Price: $165.90 |
|
|
SPEAKER
MODEL |
6MBX44 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
6.5" |
|
Impedance |
8
ohms |
|
RMS
Power Rating |
200
Watts |
| Program Power | 400 Watts |
|
Frequency
Response |
115Hz
- 5.0kHz |
|
Sensitivity
(1W/1m) |
98dB |
|
Voice
Coil Diameter |
1.7" / 44mm |
| Winding Material | Aluminum |
| Former Material | Glass Fiber |
| Winding Depth | .37" / 10mm |
| Magnetic Gap Depth | .25" / 6mm |
| Flux Density | 1.55T |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
7.36" / 187mm |
| Bolt Circle Diameter | 6.7" / 172mm |
| Baffle Cutout Diameter | 5.7" / 145mm |
| Depth | 3.43" / 87mm |
| Flange & Gasket Thickness | .4" / 11mm |
| No. Of Mounting Holes | 4 |
| Net Weight | 3.51 lbs./ 1.59 kg. |
| Shipping Weight | 3.95 lbs./ 1.79 kg. |
|
MATERIALS |
|
| Basket | Cast Aluminum |
| Cone | Waterproof Paper |
| Cone Shape | Exponential |
| Surround Shape | Triple Roll |
| Pole Design | T-Pole |
| Magnet | Neodymium |
|
THIELE-SMALL PARAMETERS |
|
|
Resonant Frequency (fs) |
113Hz |
|
Impedance
(Re) |
5.4 ohms |
| Electrical Factor(Qes) | .34 |
| Mechanical Q (Qms) | 3.9 |
| Total Q (Qts) | .31 |
| Compliance Equiv. Vol. (Vas) | 4.1 Liters/.14cu. ft. |
| Voice Coil Overhang (Xmax) | 3.5mm |
| Reference Efficiency | 1.4% |
| BL Factor | 14.7 T-M |
| Moving Mass (Mms) | 12 Grams |
| Coil Inductance (Le) | 0.2mH |
| Surface Area of Cone (Sd)m2 | 0.0132m2 |

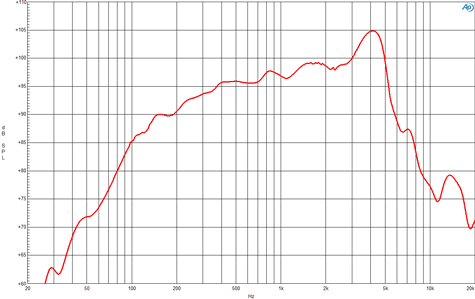

| FREQUENCY RESPONSE | |
 |
|

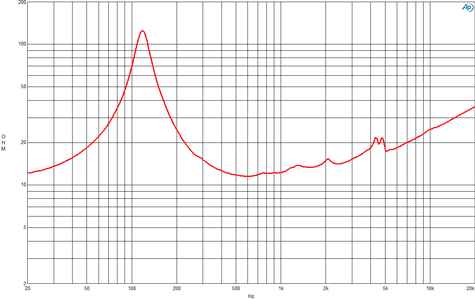

| IMPEDANCE CURVE | |
 |
|

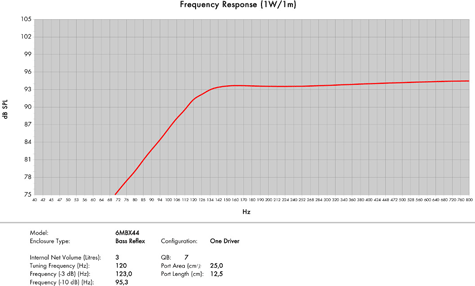

| PREDICTED FREQUENCY RESPONSE | |
 |
|

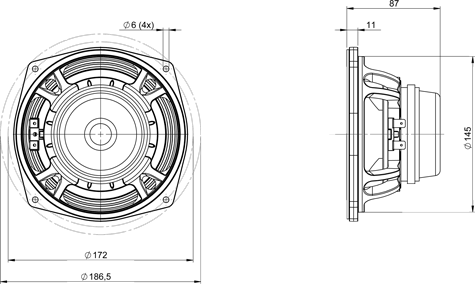

| DRAWING | |
 |
|
