THE B&C 8BG51 HAS DEEP TIGHT BASS DOWN TO 50 HZ WITH LOUD CLEAN MIDRANGE UP TO 4KHZ!
8BG51
Item Price: $153.77
|
B & C PROFESSIONAL COMPONENTS |
|
8BG51 - 8" LIGHTWEIGHT BASS / MID-BASS SPEAKER |
|
THE B&C 8BG51 HAS DEEP TIGHT BASS DOWN TO 50 HZ WITH LOUD CLEAN MIDRANGE UP TO 4KHZ! |
|
|
|
8BG51 |
|
Item Price: $153.77 |
|
|
SPEAKER
MODEL |
8BG51 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
8" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
250
Watts |
| Program Power | 500 Watts |
|
Frequency
Response |
50Hz
- 4.0kHz |
|
Sensitivity
(1W/1m) |
92dB |
|
Voice
Coil Diameter |
2"
/ 51mm |
| Winding Depth | .65" / 17mm |
| Magnetic Gap Depth | .3125" / 8mm |
| Flux Density | 1.15T |
| Recommended Enclosure Size | .67 cu. ft. / 19 Liters |
| Recommended Tuning | 49Hz |
|
MATERIALS |
|
| Winding Material | Copper |
| Former Material | Glass Fiber |
| Surround Shape | Half Roll |
| Cone Shape | Exponential |
| Cone Protection | Waterproof |
| Spider | Single |
| Magnet | Neodymium |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
8.8" / 225mm |
| Bolt Circle Diameter | 8.3" / 210mm |
| Baffle Cutout Diameter | 7.4" / 187mm |
| Depth | 3.5" / 90mm |
| Flange & Gasket Thickness | .43" / 11mm |
| No. Of Mounting Holes | 8 |
| Net Weight | 4.0 lbs./ 1.8 kg. |
| Shipping Weight | 4.8 lbs./ 2.2 kg. |
|
THIELE-SMALL PARAMETERS |
|
|
Resonant Frequency (fs) |
52 Hz |
|
Impedance
(Re) |
5.1 ohms |
| Electrical Factor(Qes) | .4 |
| Mechanical Q (Qms) | 12.3 |
| Total Q (Qts) | .42 |
| Compliance Equiv. Vol. (Vas) | 18 Liters/.63cu. ft. |
| Voice Coil Overhang (Xmax) | 6.5mm |
| Surface Area of Cone (Sd)m2 | 0.022m2 |
| Diaphragm Mass (Mms) | 35 Grams |
| Reference Efficiency | .6% |
| BL Factor | 11.8 T-M |
| Coil Inductance (Le) | 0.5mH |

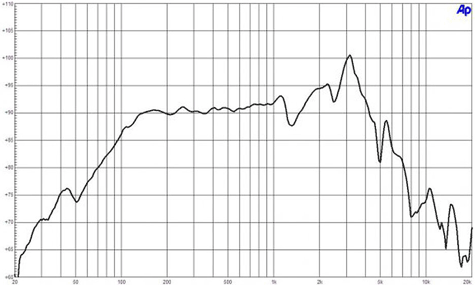

| FREQUENCY RESPONSE | |
 |
|

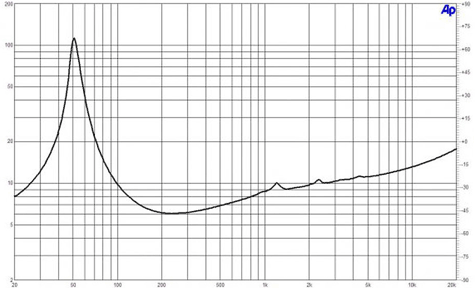

| IMPEDANCE CURVE | |
 |
|
