B & C PROFESSIONAL COMPONENTS |
|
8CXN51 - 8" COAXIAL SPEAKER |
|
DESIGNED FOR HIGH QUALITY SPEAKER SYSTEMS THAT REQUIRE A SMOOTH FLAT RESPONSE FROM 70HZ TO 18KHZ! |
|
|
|
8CXN51 |
|
Item Price: $324.36 |
|
|
SPEAKER
MODEL |
8CXN51 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
8" |
|
Impedance |
8
ohms |
|
Frequency
Response |
70Hz
- 18kHz |
| Recommended Crossover Frequency | 1.8kHz |
| Dispersion | 100° |
|
LOW FREQUENCY WOOFER |
|
| Sensitivity (1W/1m) | 97dB |
|
RMS
Power Rating |
250
Watts |
| Program Power | 500 Watts |
|
Voice Coil Diameter |
2.0"
/ 51mm |
| Winding Material | Aluminum |
| Magnet | Neodymium |
|
HIGH FREQUENCY DRIVER |
|
|
Sensitivity (1W/1m) |
104dB |
| AES Power Rating | 50 Watts |
| Program Power | 100 Watts |
| Voice Coil Diameter | 1.7" / 44mm |
| Winding Material | Aluminum |
| Diaphragm Material | Polyimide |
| Magnet | Neodymium |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
8.8" / 225mm |
| Bolt Circle Diameter | 8.3" / 210mm |
| Baffle Cutout Diameter | 7.4" / 187mm |
| Depth | 4.4" / 111mm |
| Flange & Gasket Thickness | .4" / 9.8mm |
| Net Weight | 5.5 lbs./ 2.5 kg. |
| Shipping Weight | 7.0 lbs./ 3.2 kg. |
|
THIELE-SMALL
PARAMETERS |
|
|
Resonant Frequency (fs) |
68 Hz |
|
Impedance
(Re) |
4.9 ohms |
| Electrical Factor(Qes) | .29 |
| Mechanical Q (Qms) | 4.7 |
| Total Q (Qts) | .27 |
| Compliance Equiv. Vol. (Vas) | 17 Liters/.6cu. ft. |
| Voice Coil Overhang (Xmax) | 6.0mm |
| Reference Efficiency | 1.8% |
| BL Factor | 12.6 T-M |
| Diaphragm Mass (Mms) | 22 grams |
| Surface Area of Cone (Sd)m2 | 0.0220m2 |
| Coil Inductance (Le) | 0.9mH |
|

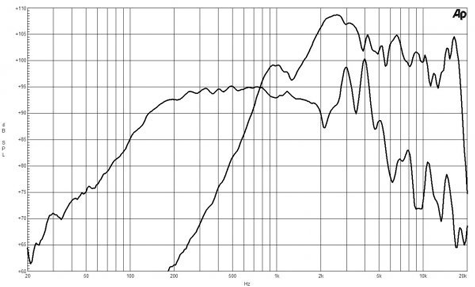

FREQUENCY RESPONSE |
|
|
|
|
| IMPEDANCE CURVE | |
 |
|
| PREDICTED FREQUENCY RESPONSE | |
|
CABINET SPECS |
|
|
