THE B&C 8FCX51 HAS ONE MAGNET ASSEMBLY FOR PRECISE TIME ALIGNMENT! |
|
|
|
8FCX51 |
|
Item Price: $275.10 |
|
|
B & C PROFESSIONAL COMPONENTS |
|

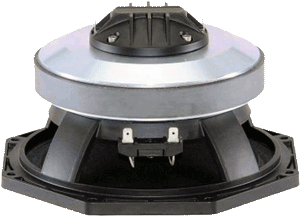

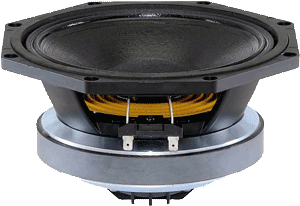

8FCX51 - 8" COAXIAL SPEAKER |
|
THE B&C 8FCX51 HAS ONE MAGNET ASSEMBLY FOR PRECISE TIME ALIGNMENT! |
|
|
|
8FCX51 |
|
Item Price: $275.10 |
|
|
SPEAKER
MODEL |
8FCX51 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
8" |
|
Impedance |
8
ohms |
|
Frequency
Response |
69Hz
- 18kHz |
| Dispersion | 100° |
|
LOW FREQUENCY WOOFER |
|
| Sensitivity (1W/1m) | 96dB |
|
RMS
Power Rating |
250
Watts |
| Program Power | 500 Watts |
|
Voice Coil Diameter |
2.0"
/ 50mm |
| Winding Material | Aluminum |
|
HIGH FREQUENCY DRIVER |
|
|
Sensitivity (1W/1m) |
104dB |
| RMS Power Rating | 50 Watts |
| Program Power | 100 Watts |
| Voice Coil Diameter | 1.7" / 44mm |
| Winding Material | Aluminum |
| Diaphragm Material | Polyimides |
| Max. Recom. Crossover | 1.8kHz |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
8.8" / 225mm |
| Bolt Circle Diameter | 8.3" / 210mm |
| Baffle Cutout Diameter | 7.4" / 187mm |
| Depth | 4.64" / 118mm |
| Flange & Gasket Thickness | .37" / 10mm |
| Net Weight | 11.2 lbs./ 5.1 kg. |
| Shipping Weight | 12.3 lbs./ 5.6 kg |
|
THIELE-SMALL PARAMETERS |
|
|
Resonant Frequency (fs) |
69 Hz |
|
Impedance
(Re) |
4.9 ohms |
| Electrical Factor(Qes) | .36 |
| Mechanical Q (Qms) | 6.3 |
| Total Q (Qts) | .34 |
| Compliance Equiv. Vol. (Vas) | 16 Liters/.56cu. ft. |
| Voice Coil Overhang (Xmax) | 6.5mm |
| Reference Efficiency | 1.4% |
| BL Factor | 11.5 T-M |
| Diaphragm Mass(Mms) | 22 Grams |
| Surface Area of Cone (Sd)m2 | 0.0220m2 |
| Coil Inductance (Le) | .9mH |
|

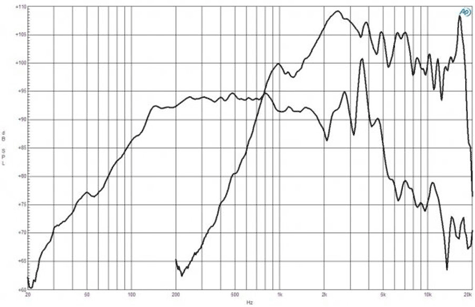

FREQUENCY RESPONSE |
|
 |
|

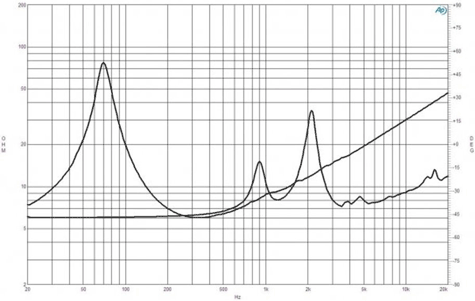

| IMPEDANCE | |
 |
|

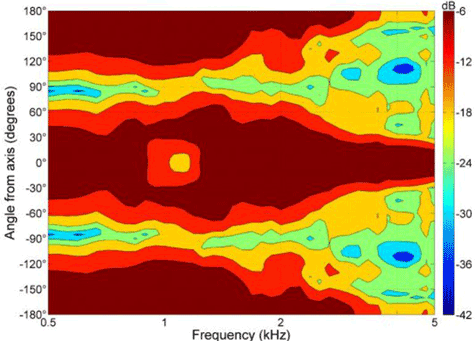

| LOW FREQUENCY DIRECTIVITY | |
 |
|

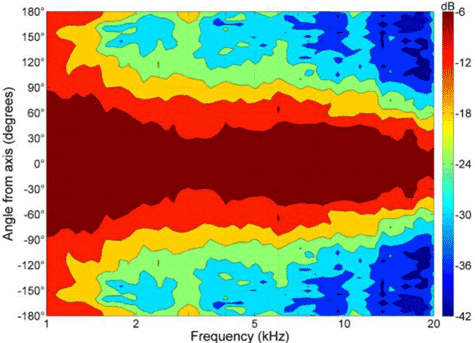

| HIGH FREQUENCY DIRECTIVITY | |
 |
|

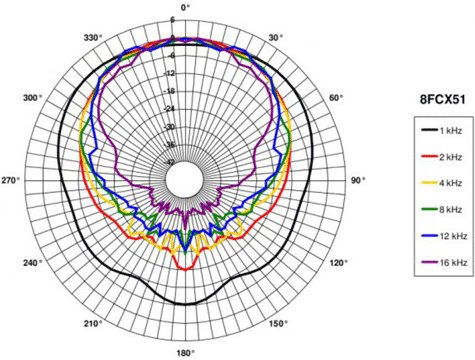

| POLAR RESPONSE | |
 |
|

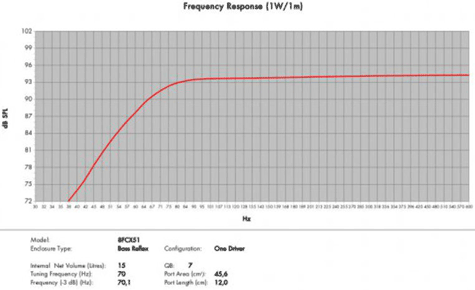

| PREDICTED FREQUENCY RESPONSE | |
 |
|
