THE B&C 8MBX51 HAS AN ALUMINUM DEMODULATION RING FOR A MORE FLAT FREQUENCY RESPONSE WITH LOWER DISTORTION!
8MBX51
Item Price: $192.84
|
B & C PROFESSIONAL COMPONENTS |
|

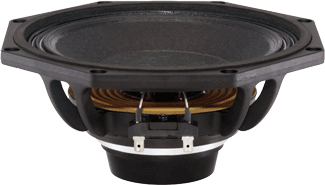

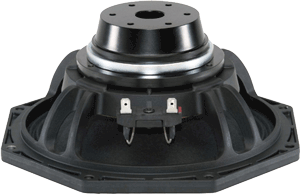

8MBX51 - 8" LIGHTWEIGHT MID-BASS SPEAKER |
|
THE B&C 8MBX51 HAS AN ALUMINUM DEMODULATION RING FOR A MORE FLAT FREQUENCY RESPONSE WITH LOWER DISTORTION! |
|
|
|
8MBX51 |
|
Item Price: $192.84 |
|
|
SPEAKER
MODEL |
8MBX51 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
8" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
200
Watts |
| Program Power | 400 Watts |
|
Frequency
Response |
60Hz
- 4.0kHz |
|
Sensitivity
(1W/1m) |
96.5dB |
|
Voice
Coil Diameter |
2"
/ 51mm |
| Winding Depth | .59" / 15mm |
| Magnetic Gap Depth | .28" / 7mm |
| Flux Density | 1.3T |
| Recommended Enclosure Size | .35 cu. ft. / 10 Liters |
| Recommended Tuning | 63Hz |
|
MATERIALS |
|
| Winding Material | Copper |
| Former Material | Glass Fiber |
| Surround Shape | Triple Roll |
| Cone Shape | Curvilinear |
| Cone Protection | Waterproof |
| Demodulation Ring | Aluminum |
| Spider | Single |
| Magnet | Neodymium |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
8.86" / 225mm |
| Bolt Circle Diameter | 8.3" / 210mm |
| Baffle Cutout Diameter | 7.36" / 187mm |
| Depth | 3.66" / 93mm |
| Flange & Gasket Thickness | .35" / 9mm |
| No. Of Mounting Holes | 8 |
| Net Weight | 3.97 lbs./ 1.8 kg. |
| Shipping Weight | 4.96 lbs./ 2.25 kg. |
|
THIELE-SMALL PARAMETERS |
|
|
Resonant Frequency (fs) |
60 Hz |
|
Impedance
(Re) |
4.9 ohms |
| Electrical Factor(Qes) | .31 |
| Mechanical Q (Qms) | 5.6 |
| Total Q (Qts) | .29 |
| Compliance Equiv. Vol. (Vas) | 23 Liters/.81cu. ft. |
| Voice Coil Overhang (Xmax) | 6.0mm |
| Surface Area of Cone (Sd)m2 | 0.022m2 |
| Diaphragm Mass(Mms) | 20 Grams |
| Reference Efficiency | 1.7% |
| BL Factor | 11.4 T-M |
| Coil Inductance (Le) | 0.4mH |

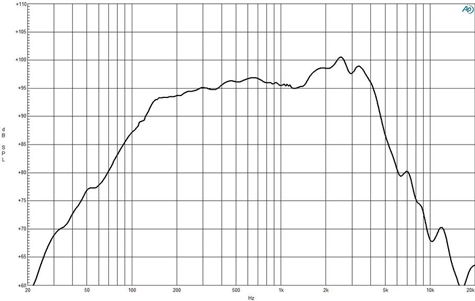

| FREQUENCY RESPONSE | |
 |
|

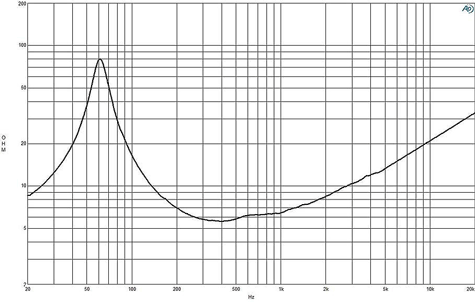

| IMPEDANCE CURVE | |
 |
|

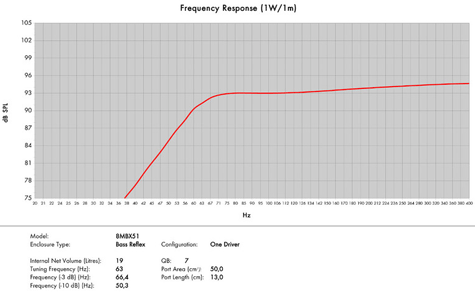

| PREDICTED RESPONSE | |
 |
|
