B & C PROFESSIONAL COMPONENTS

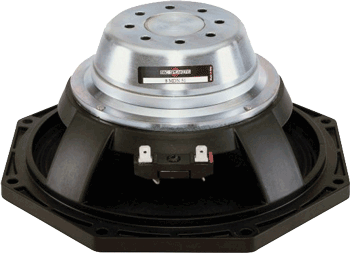

8MDN51 - 8" LIGHTWEIGHT WOOFER

THE B&C 8MDN51 IS A 8" WOOFER HANDLES 200 WATTS AES STANDARD & 400 WATTS PROGRAM POWER
FEATURES GOOD SENSITIVITY OF 97DB SPL & WIDE FREQUENCY RANGE OF 70HZ TO 4KHZ
WEIGHS ONLY 5.6 LBS THANKS TO ITS' LIGHTWEIGHT NEODYMIUM MAGNET
HIGH 6.0 XMAX FOR CLEAN TIGHT BASS W/ FLAT SMOOTH MIDRANGE
THE FRAME DESIGN WORKS GREAT FOR LINE ARRAY SYSTEMS
THE B&C 8MDN51 8" SPEAKER IS OPTIMIZED FOR ALL HIGH QUALITY BASS & MID-BASS APPLICATIONS
AVAILABLE IN 8 OR 16 OHMS

THE B&C 8MDN51 HAS A TIGHT CLEAN BASS & FLAT SMOOTH MIDS FROM THIS LIGHTWEIGHT 8" 400 WATT WOOFER!
	8MDN51
	8 Ohms Item Price: $190.50
	16 Ohms Item Price: $190.50

SPEAKER MODEL	8MDN51
SPECIFICATIONS
Nominal Basket Diameter	8" / 200mm
Impedance	8 or 16 ohms
RMS Power Rating	200 Watts
Program Power	400 Watts
Frequency Response	70Hz - 4.0kHz
Sensitivity (1W/1m)	97dB
Voice Coil Diameter	2.0" / 51mm
Winding Material	Aluminum
Former Material	Kapton
Winding Depth	.62" / 16mm
Magnetic Gap Depth	.31" / 8mm
Flux Density	1.45T
MOUNTING INFORMATION
Overall Diameter	8.8" / 225mm
Bolt Circle Diameter	8.3" / 210mm
Baffle Cutout Diameter	7.4" / 187mm
Depth	3.74" / 95mm
Flange & Gasket Thickness	.4" / 11mm
No. Of Mounting Holes	8
Net Weight	5.6 lbs./ 2.55 kg.
Shipping Weight	6.5 lbs./ 2.95 kg.
THIELE-SMALL PARAMETERS
Resonant Frequency (fs)	70 Hz
Impedance (Re)	5.1 ohms
Electrical Factor(Qes)	.21
Mechanical Q (Qms)	3.7
Total Q (Qts)	.2
Compliance Equiv. Vol. (Vas)	16 Liters/.60cu. ft.
Voice Coil Overhang (Xmax)	6.0mm
Diaphragm Mass (Mms)	.230 kg.
Reference Efficiency	2.4%
BL Factor	15.3 T-M
Coil Inductance (Le)	0.8mH

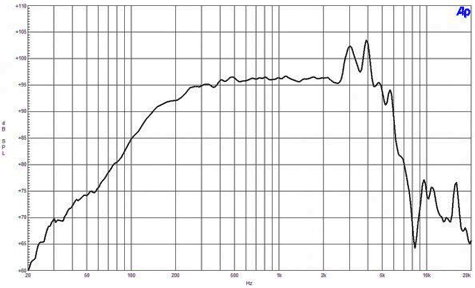

FREQUENCY RESPONSE

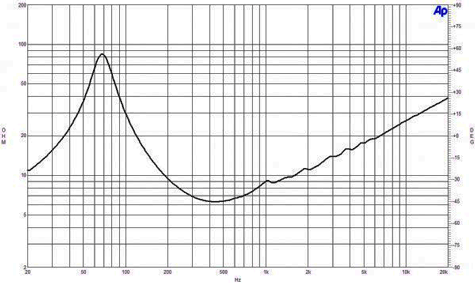

IMPEDANCE CURVE
