THE B&C 8NDL64 HAS A COPPER DEMODULATION RING FOR A MORE FLAT FREQUENCY RESPONSE WITH LOWER DISTORTION!
8NDL64
8 Ohms
Item Price: $183.07
16 Ohms
Item Price: $183.07
|
B & C PROFESSIONAL COMPONENTS |
|

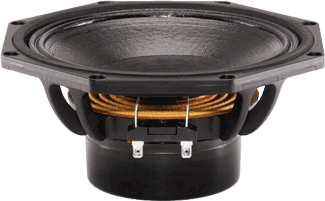

8NDL64 - 8" LIGHTWEIGHT MID-BASS SPEAKER |
|
THE B&C 8NDL64 HAS A COPPER DEMODULATION RING FOR A MORE FLAT FREQUENCY RESPONSE WITH LOWER DISTORTION! |
|
|
|
8NDL64 |
|
8 Ohms
Item Price: $183.07 |
|
|
16 Ohms
Item Price: $183.07 |
|
|
SPEAKER
MODEL |
8NDL64 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
8" |
|
Impedance |
8
or 16
ohms |
|
AES
Power Rating |
350
Watts |
| Program Power | 700 Watts |
|
Frequency
Response |
80Hz
- 4.0kHz |
|
Sensitivity
(1W/1m) |
97dB |
|
Voice
Coil Diameter |
2.5"
/ 64mm |
| Winding Depth | .55" / 14mm |
| Magnetic Gap Depth | .3125" / 8mm |
| Flux Density | 1.25T |
| Recommended Enclosure Size | .35 cu. ft. / 10 Liters |
| Recommended Tuning | 85Hz |
|
MATERIALS |
|
| Winding Material | Copper |
| Former Material | Glass Fiber |
| Surround Shape | Double Roll |
| Cone Shape | Exponential |
| Cone Protection | Waterproof |
| Spider | Single |
| Magnet | Neodymium |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
8.8" / 225mm |
| Bolt Circle Diameter | 8.3" / 210mm |
| Baffle Cutout Diameter | 7.4" / 187mm |
| Depth | 3.74" / 95mm |
| Flange & Gasket Thickness | .39" / 10mm |
| No. Of Mounting Holes | 8 |
| Net Weight | 6.17 lbs./ 2.8 kg. |
| Shipping Weight | 7.05 lbs./ 3.2 kg. |
|
THIELE-SMALL PARAMETERS |
|
|
Resonant Frequency (fs) |
80 Hz |
|
Impedance
(Re) |
5.4 ohms |
| Electrical Factor(Qes) | .24 |
| Mechanical Q (Qms) | 11.0 |
| Total Q (Qts) | .25 |
| Compliance Equiv. Vol. (Vas) | 10 Liters/.35cu. ft. |
| Voice Coil Overhang (Xmax) | 4.5mm |
| Surface Area of Cone (Sd)m2 | 0.022m2 |
| Diaphragm Mass(Mms) | 28 Grams |
| Reference Efficiency | 1.9% |
| BL Factor | 17.5 T-M |
| Coil Inductance (Le) | 0.62mH |

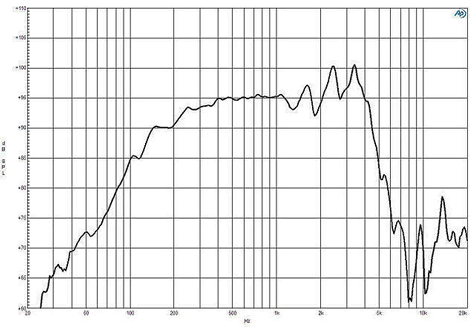

| FREQUENCY RESPONSE | |
 |
|

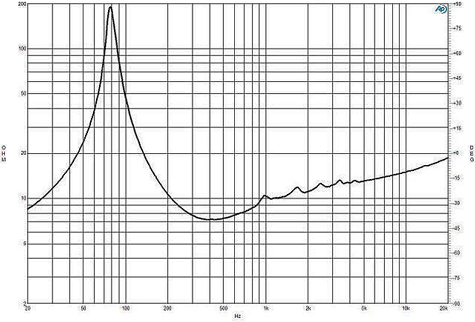

| IMPEDANCE CURVE | |
 |
|

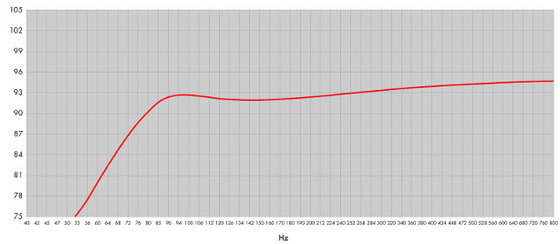

| PREDICTED RESPONSE | |
| In a .35 cu. ft/ 10 Liter cabinet ported cabinet | |
 |
|
