B&C DCM414 LIGHTWEIGHT 2 INCH EXIT RING RADIATOR MIDRANGE DRIVER COVERS 300HZ TO 10KHZ WITH A 4" VOICE COIL! |
|
|
|
DCM414 |
|
Item Price: $398.28 |
|
|
B & C PROFESSIONAL COMPONENTS |
|

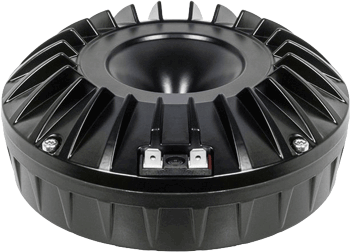

DCM414 - 1.4" EXIT RING RADIATOR MIDRANGE DRIVER |
|
B&C DCM414 LIGHTWEIGHT 2 INCH EXIT RING RADIATOR MIDRANGE DRIVER COVERS 300HZ TO 10KHZ WITH A 4" VOICE COIL! |
|
|
|
DCM414 |
|
Item Price: $398.28 |
|
|
SPEAKER
MODEL |
DCM414 |
|
SPECIFICATIONS |
|
|
Throat Diameter |
2" |
|
Impedance |
8
ohms |
|
RMS
Power Rating |
110
Watts |
| Program Power | 220 Watts |
|
Frequency
Response |
300Hz
- 6kHz |
| Recommended Crossover | 300Hz |
|
Sensitivity
(1W/1m) |
112dB |
|
Voice
Coil Diameter |
4" /
100mm |
| Inductance | 0.28mH |
| Flux Density | 1.9T |
|
MATERIALS |
|
| Diaphragm | HT Polymer |
| Winding Material | Aluminum |
| Magnet | Neodymium Ring |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
6.0" / 152mm |
| Mounting Holes | (4)M6 holes on 90°- 4" Dia. |
| Depth | 3.74" / 95mm |
| Hardware | Includes (4) M6 Mounting Studs w/ Bolts & Washers |
| Net Weight | 5.07 lbs./ 2.3 kg. |
| Shipping Weight | 5.51 lbs./ 2.5 kg. |
|

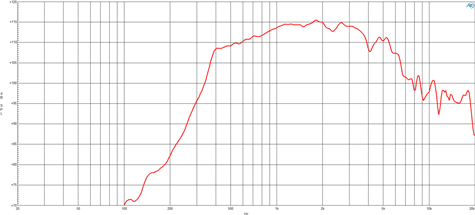

FREQUENCY RESPONSE |
|
|
|
|
|

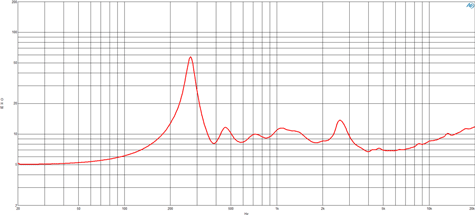

IMPEDANCE |
|
|
|
|
|

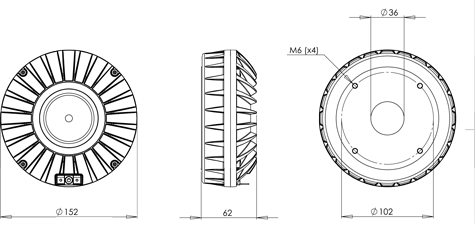

DRAWING |
|
|
|
|
