B&C DCM50 is a 2" midrange/high frequency compression driver- B&C DCM50 midrange/high frequency drivers - B&C 2" high power efficient midrange/high frequency driver for speaker systems. B&C DCM50 midrange/high frequency drivers available now.

B & C PROFESSIONAL COMPONENTS

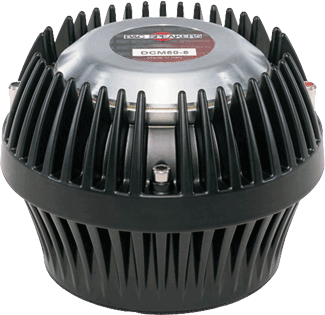

DCM50 - 2" MIDRANGE/HIGH FREQUENCY DRIVER

THE B&C DCM50 IS A 2" EXIT MIDRANGE/HIGH FREQUENCY COMPRESSION DRIVER THAT HANDLES 80 WATTS AES STANDARD & 160 WATTS PROGRAM
WIDE FREQUENCY RANGE FROM 400HZ TO 10KHZ WITH HIGH EFFICIENCY OF 108.5DB SPL
FEATURES A LIGHTWEIGHT NEODYMIUM MAGNET WEIGHS ONLY 7.0LBS. & SINGLE 2" VOICE COIL
COMPOSITE DIAPHRAGM FOR A MORE DURABLE & YET CLEAN SOUND
CHASSIS DESIGNS ACTS AS A HEAT SINK FOR BETTER COOLING
MIDRANGE IS VERY CLEAN AND ARTICULATE WITH NICE HIGHS
THE B&C DCM500 IS OPTIMIZED FOR 2-WAY SPEAKER SYSTEMS AS A STAND ALONE 2" MIDRANGE/HIGH FREQUENCY DRIVER FROM 400HZ TO 10KHZ
AVAILABLE IN 8 & 16 OHMS

THE B&C DCM50 LIGHTWEIGHT NEODYMIUM MIDRANGE/HIGH FREQUENCY DRIVER, WIDE FRQUENCY RANGE FROM 400HZ TO 10KHZ & 2" VOICE COIL!
	DCM50
	8 ohms Item Price: $492.72
	16 ohms Item Price: $492.72

SPEAKER MODEL	DCM50
SPECIFICATIONS
Throat Diameter	2" / 50mm
Impedance	8 & 16 ohms
RMS Power Rating	80 Watts
Program Power	160 Watts
Frequency Response	400Hz - 10kHz
Recommended Crossover	400Hz
Sensitivity (1W/1m)	108.5dB
Voice Coil Diameter	2" / 50mm
Inductance	0.18mH
Flux Density	2.1T
MATERIALS
Diaphragm	Composite
Winding Material	Aluminum
Magnet	Neodymium
MOUNTING INFORMATION
Overall Diameter	6.0" / 152mm
Mounting Holes	(4)M6 holes on 90°- 4" Dia.
Depth	4.25" / 108mm
Net Weight	7.0 lbs./ 3.2 kg.
Shipping Weight	7.5 lbs./ 3.4 kg.

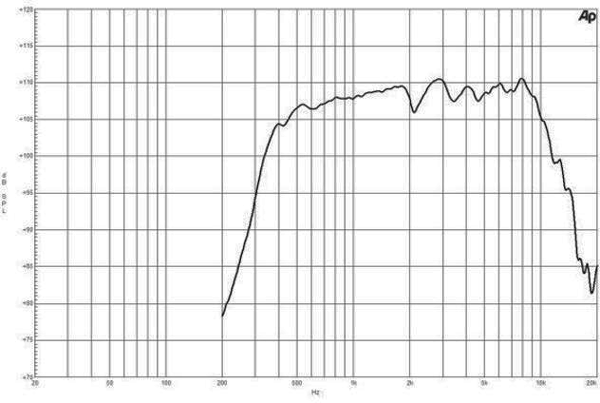

FREQUENCY RESPONSE
