B & C  PROFESSIONAL COMPONENTS

DCX462 - 2" COAXIAL COMPRESSION DRIVER

THE B&C DCX462 LIGHTWEIGHT NEODYMIUM COAXIAL COMPRESSION DRIVER SOUNDS REALLY SMOOTH & BALANCED THROUGH ITS' FREQUENCY RANGE!

B&C DCX462 Coaxial DriverB&C DCX462

DCX462

Item Price: $715.21

SPEAKER MODEL

DCX462

MIDRANGE SPECIFICATIONS

Throat Diameter

2" / 50mm

Impedance

8 ohms

RMS Power Rating

110 Watts

Program Power 220 Watts

Frequency Response

300Hz - 5.5kHz

Sensitivity (1W/1m)

111.1dB

Voice Coil Diameter

4" / 100mm

Inductance 0.14mH
Flux Density 1.9T

HIGH FREQUENCY SPECIFICATIONS

Throat Diameter 1" / 25mm
Impedance 8 ohms
RMS Power Rating 80 Watts
Program Power 160 Watts
Frequency Response 3.5kHz - 18kHz
Sensitivity (1W/1m) 111.4dB
Voice Coil Diameter 2.5" / 65mm
Inductance 0.1mH
Flux Density 2.14T

MIDRANGE & HIGH FREQUENCY DRIVER MATERIALS

Diaphragm HT Polymer
Winding Material Aluminum
Magnet Neodymium

MOUNTING INFORMATION

Overall Diameter 5.98" / 152mm
Mounting Holes (4)M6 holes on 90°- 4" Dia.
Depth 4.33" / 110mm
Net Weight 8.82 lbs./ 4.0 kg.
Shipping Weight 9.26 lbs./ 4.2 kg.

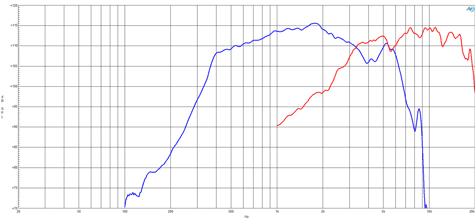

FREQUENCY RESPONSE

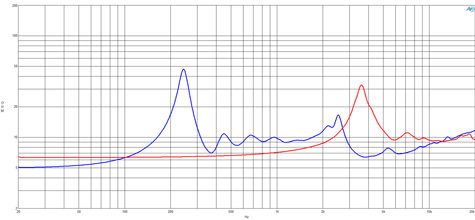

IMPEDANCE CURVES
