THE B&C DCX464 1.4" EXIT NEODYMIUM COAXIAL COMPRESSION DRIVER SOUNDS REALLY SMOOTH & BALANCED THROUGH ITS' FREQUENCY RANGE! |
|
|
|
DCX464 |
|
8 Ohms
Item Price: $656.16 |
|
|
16 Ohms
Item Price: $656.16 |
|
|
B & C PROFESSIONAL COMPONENTS |
|
DCX464 - 1.4" COAXIAL COMPRESSION DRIVER |
|
THE B&C DCX464 1.4" EXIT NEODYMIUM COAXIAL COMPRESSION DRIVER SOUNDS REALLY SMOOTH & BALANCED THROUGH ITS' FREQUENCY RANGE! |
|
|
|
DCX464 |
|
8 Ohms
Item Price: $656.16 |
|
|
16 Ohms
Item Price: $656.16 |
|
|
SPEAKER
MODEL |
DCX464 |
|
MIDRANGE SPECIFICATIONS |
|
|
Throat Diameter |
1.4" |
|
Impedance |
8
ohms |
|
RMS
Power Rating |
110
Watts |
| Program Power | 220 Watts |
|
Frequency
Response |
300Hz
- 5.5kHz |
|
Sensitivity
(1W/1m) |
111.1dB |
|
Voice
Coil Diameter |
4" /
100mm |
| Inductance | 0.14mH |
| Flux Density | 1.9T |
|
HIGH FREQUENCY SPECIFICATIONS |
|
|
Throat Diameter |
1" |
|
Impedance |
8 ohms |
|
RMS
Power Rating |
80
Watts |
| Program Power |
160
Watts |
|
Frequency
Response |
3.5kHz - 18kHz |
|
Sensitivity
(1W/1m) |
111.4dB |
|
Voice
Coil Diameter |
2.5" /
65mm |
| Inductance | 0.1mH |
| Flux Density | 2.14T |
|
MIDRANGE & HIGH FREQUENCY DRIVER MATERIALS |
|
| Diaphragm | HT Polymer |
| Winding Material | Aluminum |
| Magnet | Neodymium |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
5.98" / 152mm |
| Mounting Holes | (4)M6 holes on 90°- 4" Dia. |
| Depth | 4.33" / 110mm |
| Net Weight | 8.82 lbs./ 4.0 kg. |
| Shipping Weight | 9.26 lbs./ 4.2 kg. |
|

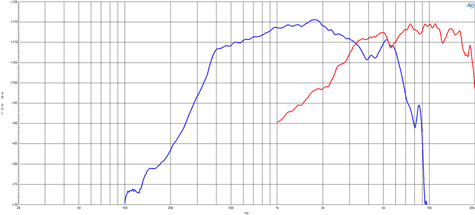

FREQUENCY RESPONSE |
|
|
|
|
|

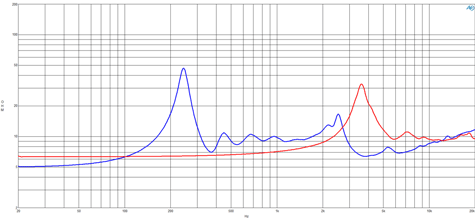

IMPEDANCE CURVES |
|
|
|
|
