B & C  PROFESSIONAL COMPONENTS

DE10 - 1" HIGH FREQUENCY DRIVER

THE B&C DE10 HAS A NICE SOUND FROM THIS AFFORDABLE 1" HIGH FREQUENCY DRIVER!

B&C DE10

DE10



Item Price: $52.87

SPEAKER MODEL

DE10

SPECIFICATIONS

Throat Diameter

1" / 25mm

Impedance

8 ohms

RMS Power Rating

20 Watts

Program Power 40 Watts

Frequency Response

1.5kHz - 18kHz

Recommended Crossover 2.5kHz

Sensitivity (1W/1m)

107dB

Voice Coil Diameter

1" / 25mm

Winding Material Aluminum
Inductance 0.1mH
Diaphragm Material Mylar
Flux Density 1.6T

MOUNTING INFORMATION

Overall Diameter 4.4" / 90mm
Mounting Holes (2) M5 holes on 180°- 3" Dia.
Depth 2.1" / 53mm
Net Weight 2.1 lbs./ .95 kg.

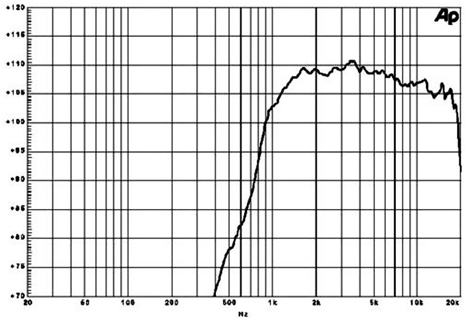

FREQUENCY RESPONSE

B&C DE10 Frequency
