B & C  PROFESSIONAL COMPONENTS

DE1080TN - 1.5" HIGH FREQUENCY DRIVER

THE B&C DE1080TN IS A LIGHTWEIGHT HF DRIVER THAT DELIVERS A VERY SMOOTH SOUND WITH HIGH POWER HANDLING !

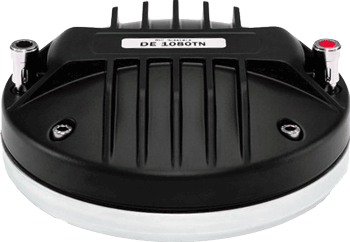

B&C DE1080TN

DE1080TN

Item Price: $557.37

SPEAKER MODEL

DE1080TN

SPECIFICATIONS

Throat Diameter

1.5" / 38mm

Impedance

8 ohms

RMS Power Rating

140 Watts

Program Power 280 Watts

Frequency Response

500Hz - 20kHz

Recommended Crossover 800Hz

Sensitivity (1W/1m)

109dB

Voice Coil Diameter

4" / 100mm

Inductance 0.18mH
Flux Density 1.95T

MATERIALS

Diaphragm Titanium
Surround Mylar
Winding Material CCAW
Magnet Neodymium

MOUNTING INFORMATION

Overall Diameter 6.1" / 154mm
Mounting Holes (4)M6 holes on 90°- 4" Dia.
Depth 2.4" / 60mm
Net Weight 7.5 lbs./ 3.4 kg.
Shipping Weight 7.94 lbs./ 3.6 kg.

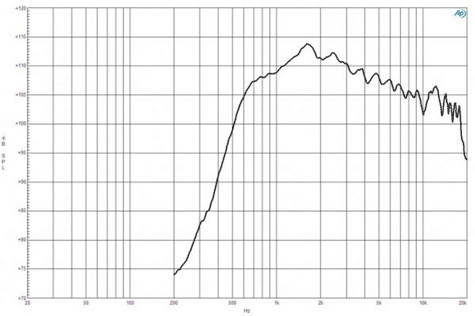

FREQUENCY RESPONSE

B&C DE1080TN Frequency

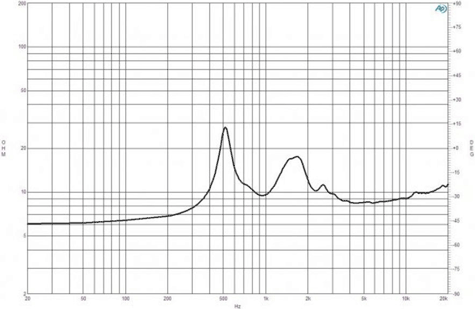

IMPEDANCE GRAPH

B&C DE1080TN Impedance

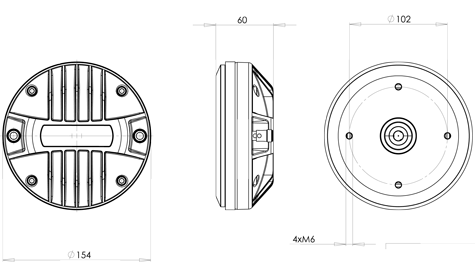

DRAWING

B&C DE1080TN Drawing
