B & C PROFESSIONAL COMPONENTS

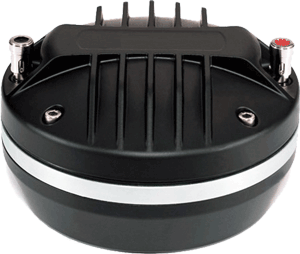

DE1085TN - 2" HIGH FREQUENCY DRIVER

THE NEW B&C DE1085TN IS A 2" HIGH FREQUENCY COMPRESSION DRIVER THAT HANDLES 140 WATTS AES STANDARD & 280 WATTS PROGRAM
LIGHTWEIGHT NEODYMIUM MAGNET WEIGHS 7.9LBS.
TITANIUM DIAPHRAGM DELIVERS A VERY SMOOTH
THE B&C DE1085TN HIGH FREQUENCY DRIVER IS OPTIMIZED FOR SPEAKER SYSTEMS IN SOUND REINFORCEMENT SYSTEMS, STAGE MONITORS, FRONT OF HOUSE SYSTEMS, CONCERT, THEATER, ETC.

LIGHTWEIGHT DRIVER DELIVERS A VERY SMOOTH SOUND WITH HIGH POWER HANDLING THANKS TO ITS' 4" VOICE COIL & POWERFUL NEODYMIUM MAGNET!

B&C DE1085TN

DE1085TN

Item Price: $562.56

SPEAKER MODEL	DE1085TN
SPECIFICATIONS
Throat Diameter	2" / 50mm
Impedance	8 ohms
RMS Power Rating	140 Watts
Program Power	280 Watts
Frequency Response	500Hz - 20kHz
Recommended Crossover	800Hz
Sensitivity (1W/1m)	109dB
Voice Coil Diameter	4" / 100mm
Inductance	0.18mH
Flux Density	1.95T
MATERIALS
Diaphragm	Titanium
Surround	Mylar
Winding Material	CCAW
Magnet	Neodymium
MOUNTING INFORMATION
Overall Diameter	6.1" / 154mm
Mounting Holes	(4)M6 holes on 90°- 4" Dia.
Depth	3.39" / 86mm
Net Weight	7.9 lbs./ 3.6 kg.
Shipping Weight	8.6 lbs./ 3.9 kg.

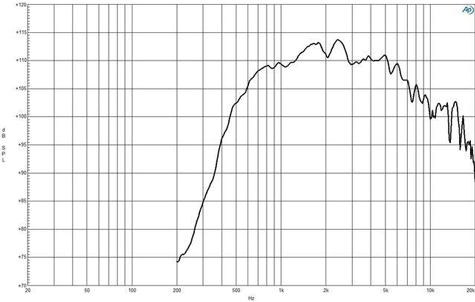

FREQUENCY RESPONSE
