THE B&C DE1090TN IS A LIGHTWEIGHT HF DRIVER THAT SOUNDS SMOOTH & DETAILED & ONLY WEIGHS 4.15LBS.! |
|
|
|
DE1090TN |
|
8 ohms
Item Price: $406.50 |
|
|
16 ohms
Item Price: $406.50 |
|
|
B & C PROFESSIONAL COMPONENTS |
|

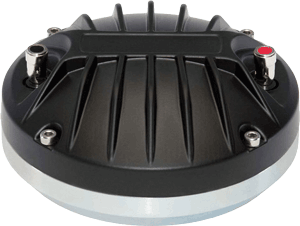

DE1090TN - 1.4" HIGH FREQUENCY DRIVER |
|
THE B&C DE1090TN IS A LIGHTWEIGHT HF DRIVER THAT SOUNDS SMOOTH & DETAILED & ONLY WEIGHS 4.15LBS.! |
|
|
|
DE1090TN |
|
8 ohms
Item Price: $406.50 |
|
|
16 ohms
Item Price: $406.50 |
|
| B&C DE1090TN Diaphragm | |
 DE1090TN-Dia |
MMD4CTN8M - 8 ohm version
|
|
MMD4CTN16M - 16 ohm version
|
|
|
SPEAKER
MODEL |
DE1090TN |
|
SPECIFICATIONS |
|
|
Throat Diameter |
1.4" |
|
Impedance |
8
ohms |
|
RMS
Power Rating |
120
Watts |
| Program Power | 240 Watts |
|
Frequency
Response |
500Hz
- 20kHz |
| Recommended Crossover | 800Hz |
|
Sensitivity
(1W/1m) |
108dB |
|
Voice
Coil Diameter |
4" / 100mm |
| Inductance | 0.18mH |
| Flux Density | 1.9T |
|
MATERIALS |
|
| Diaphragm | Titanium |
| Surround | Mylar |
| Winding Material | CCAW |
| Magnet | Neodymium |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
5" / 127mm |
| Mounting Holes | (4)M6 holes on 90°- 4" Dia. |
| Depth | 2.13" / 54mm |
| Net Weight | 4.19 lbs./ 1.9 kg. |
| Shipping Weight | 4.85 lbs./ 2.2 kg. |
|

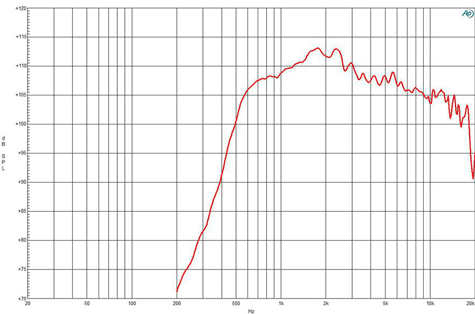

FREQUENCY RESPONSE |
|
|
|
|
