B&C DE400 is a 1 inch lightweight neodymium high frequency compression driver- B&C DE400 neodymium high frequency drivers - B&C 1 inch lightweight neodymium high power efficient high frequency driver for speaker systems. B&C DE400 high frequency drivers available

B & C PROFESSIONAL COMPONENTS

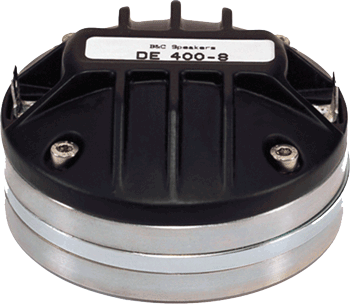

DE400 - 1" HIGH FREQUENCY DRIVER

THE B&C DE400 IS A 1" HIGH FREQUENCY LIGHTWEIGHT COMPRESSION DRIVER
FEATURES A LIGHTWEIGHT NEODYMIUM MAGNET & POLYIMIDE DIAPHRAGM
HANDLES 50 WATTS AES STANDARD & 100 WATTS PROGRAM
HIGH SENSITIVITY OF 108.5DB W/ EXCELLENT MID & HIGH DEFINITION
THE B&C DE400 HIGH FREQUENCY DRIVER IS OPTIMIZED FOR HIGH FREQUENCY LINE ARRAY SYSTEMS, PA SPEAKER SYSTEMS, ETC.
AVAILABLE IN 8 & 16 OHMS

THE B&C DE400 IS A LIGHTWEIGHT NEODYMIUM 1 INCH DRIVER THAT IS USED IN MANY OF TODAY'S LINE ARRAY SYSTEMS!
	DE400
	8 Ohms Item Price: $146.16
	16 Ohms Item Price: $146.16

SPEAKER MODEL	DE400
SPECIFICATIONS
Throat Diameter	1" / 25mm
Impedance	8 & 16 ohms
RMS Power Rating	50 Watts
Program Power	100 Watts
Frequency Response	1kHz - 18kHz
Recommended Crossover	1.6kHz
Sensitivity (1W/1m)	108.5dB
Voice Coil Diameter	1.7" / 44mm
Inductance	0.11mH
Flux Density	1.8T
MATERIALS
Winding Material	Aluminum
Diaphragm Material	Polyimide
Magnet	Neodymium
MOUNTING INFORMATION
Overall Diameter	3.3" / 85mm
Mounting Holes	(2)M6 holes on 180°- 3" Dia.
Depth	1.7" / 44mm
Net Weight	1.88 lbs./ .86 kg.
Shipping Weight	1.95 lbs./ .89 kg.

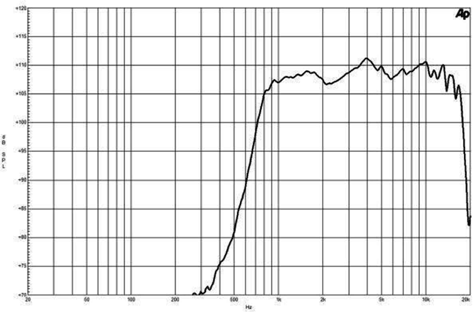

FREQUENCY RESPONSE GRAPH

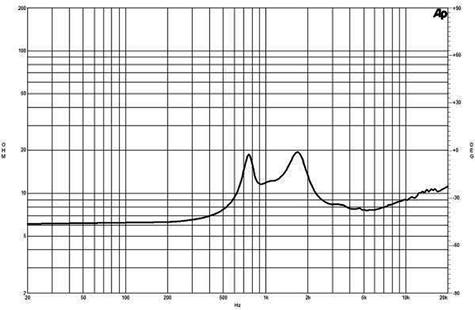

IMPEDANCE RESPONSE GRAPH
